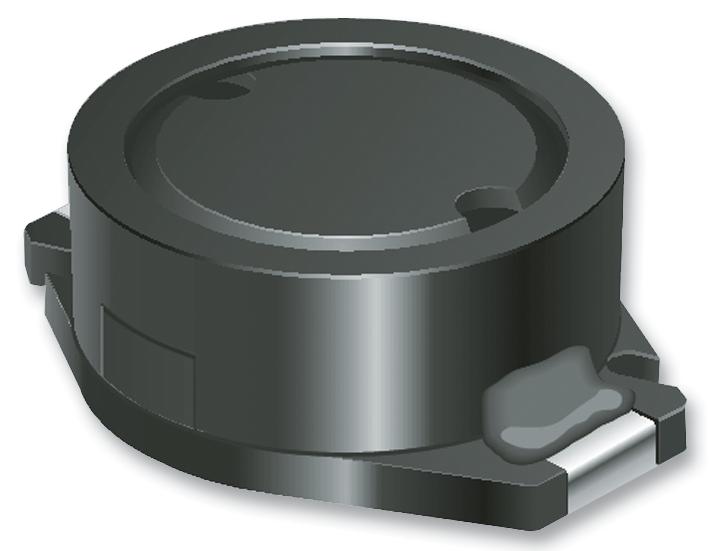

BOURNS - SRR0805-270Y - Power Inductor (SMD), 27 µH, 1 A, Shielded, 1.4 A, SRR0805
- Inductance: 27µH
- RMS Current (Irms): 1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.4A
- Product Range: SRR0805 Series
- Power Inductor Case: 10.5mm x 8mm x 4.7mm
- DC Resistance Max: 0.2ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 35
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 15.5MHz
