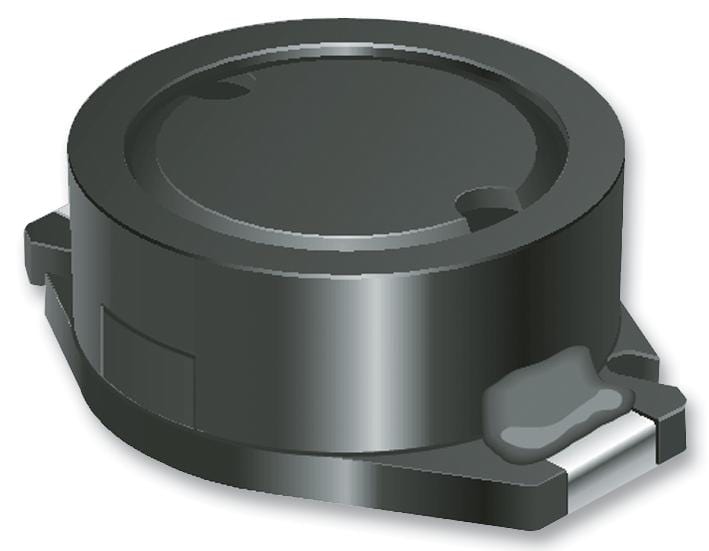

BOURNS - SRR0805-2R2M - Power Inductor (SMD), 2.2 µH, 2.5 A, Shielded, 4.9 A, SRR0805, 10.5mm x 8mm x 4.7mm
- Inductance: 2.2µH
- RMS Current (Irms): 2.5A
- Inductor Construction: Shielded
- Saturation Current (Isat): 4.9A
- Product Range: SRR0805 Series
- Power Inductor Case: 10.5mm x 8mm x 4.7mm
- DC Resistance Max: 0.04ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 18
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 75MHz
