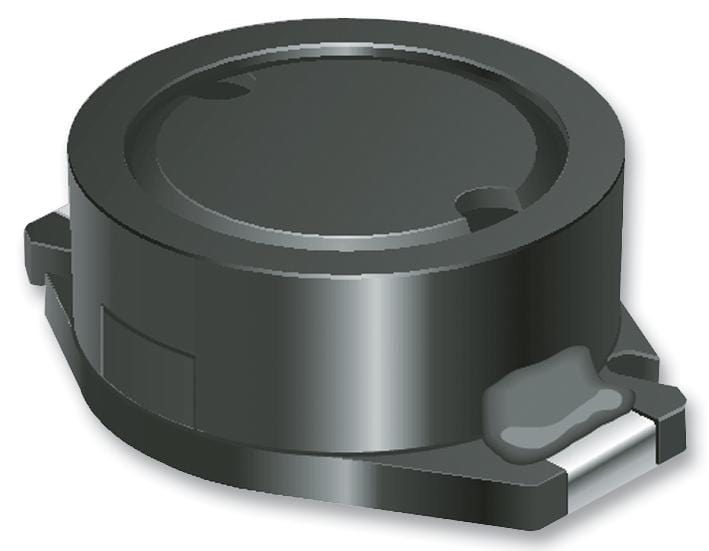

BOURNS - SRR0805-330Y - Power Inductor (SMD), 33 µH, 920 mA, Shielded, 1.2 A, SRR0805, 10.5mm x 8mm x 4.7mm
- Inductance: 33µH
- RMS Current (Irms): 920mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.2A
- Product Range: SRR0805 Series
- Power Inductor Case: 10.5mm x 8mm x 4.7mm
- DC Resistance Max: 0.24ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 40
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 13.5MHz
