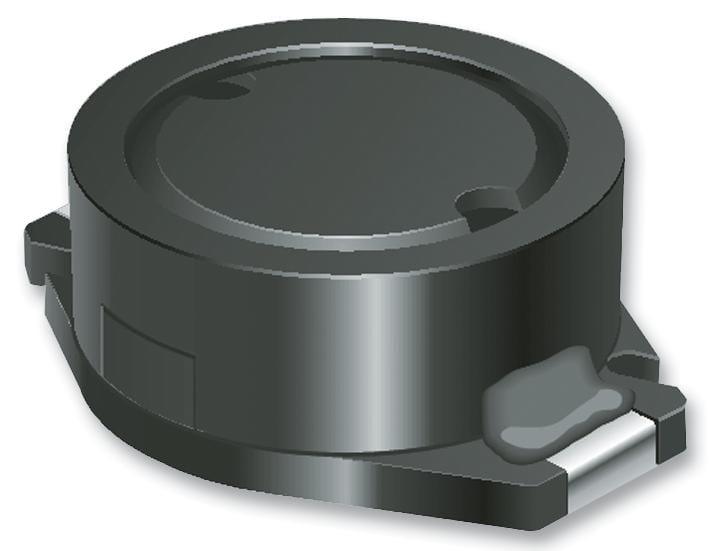

BOURNS - SRR0805-3R9M - Power Inductor (SMD), 3.9 µH, 2.1 A, Shielded, 3.7 A, SRR0805, 10.5mm x 8mm x 4.7mm
- Inductance: 3.9µH
- RMS Current (Irms): 2.1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.7A
- Product Range: SRR0805 Series
- Power Inductor Case: 10.5mm x 8mm x 4.7mm
- DC Resistance Max: 0.055ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 20
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 50MHz
