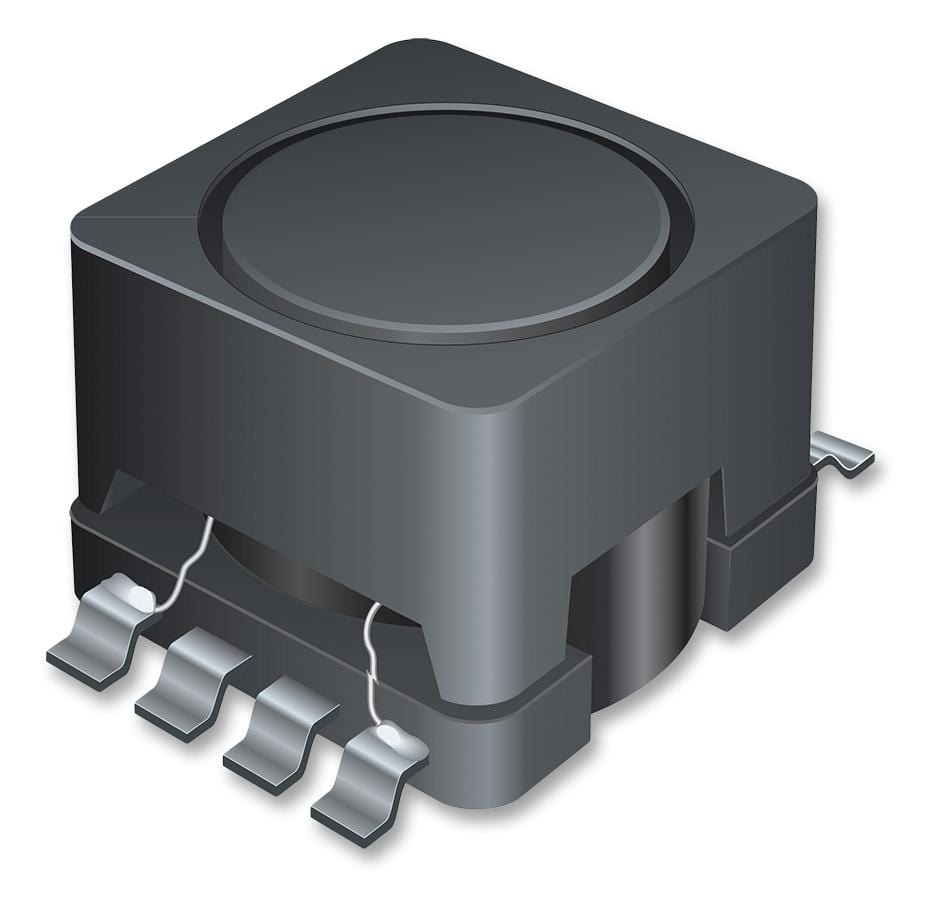

BOURNS - SRR0906-182YL - Power Inductor (SMD), 1.8 mH, 170 mA, Shielded, 200 mA, SRR0906, 10mm x 9.5mm x 6mm
- Inductance: 1.8mH
- RMS Current (Irms): 170mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 200mA
- Product Range: SRR0906 Series
- Power Inductor Case: 10mm x 9.5mm x 6mm
- DC Resistance Max: 7ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 8Pins
- Q Factor: 100
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 1.7MHz
