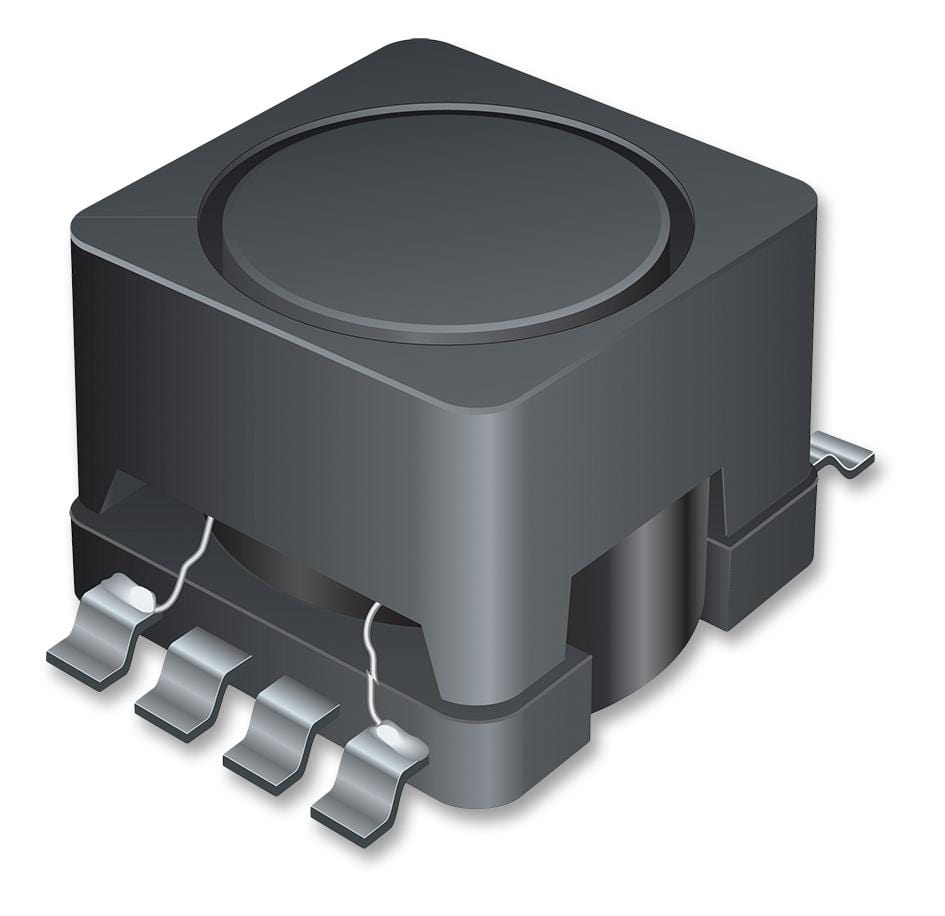

BOURNS - SRR0906-270ML - Power Inductor (SMD), 27 µH, 1.3 A, Shielded, 1.8 A, SRR0906, 10mm x 9.5mm x 6mm
- Inductance: 27µH
- RMS Current (Irms): 1.3A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.8A
- Product Range: SRR0906 Series
- Power Inductor Case: 10mm x 9.5mm x 6mm
- DC Resistance Max: 0.14ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 8Pins
- Q Factor: 35
- Q Test Frequency: 2.52MHz
- Self Resonant Frequency Min: 17MHz
