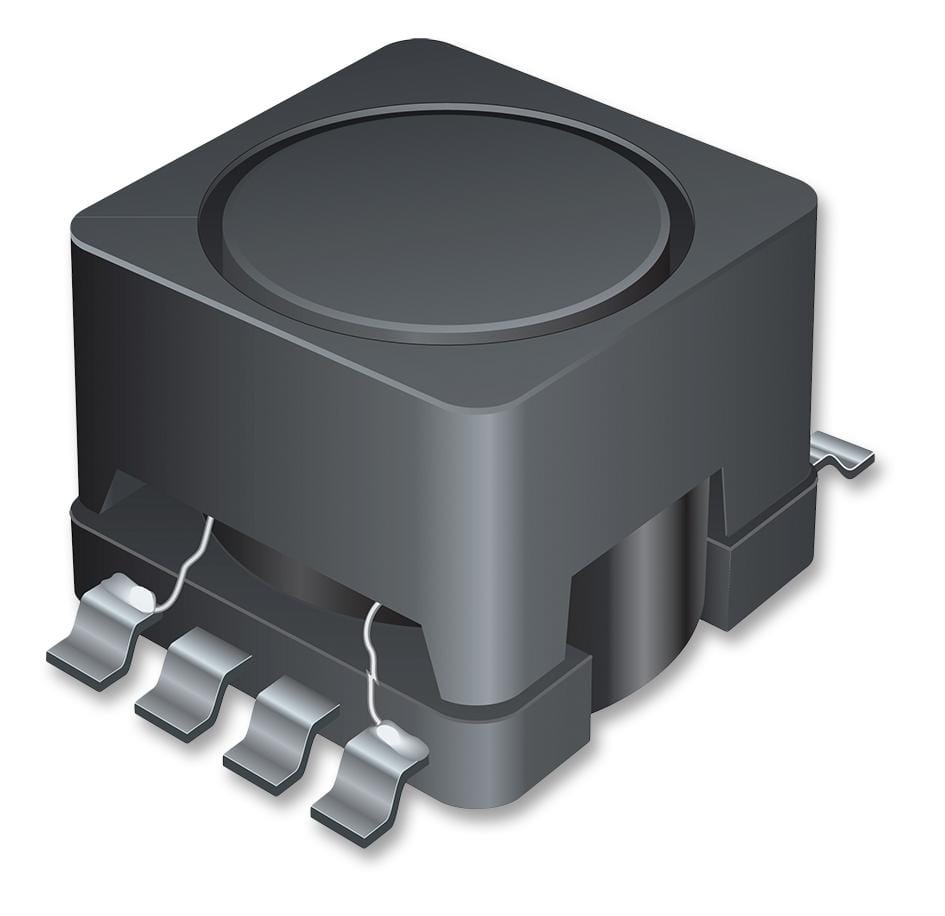

BOURNS - SRR0906-271YL - Power Inductor (SMD), 270 µH, 440 mA, Shielded, 550 mA, SRR0906, 10mm x 9.5mm x 6mm
- Inductance: 270µH
- RMS Current (Irms): 440mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 550mA
- Product Range: SRR0906 Series
- Power Inductor Case: 10mm x 9.5mm x 6mm
- DC Resistance Max: 1.1ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 8Pins
- Q Factor: 40
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 5MHz
