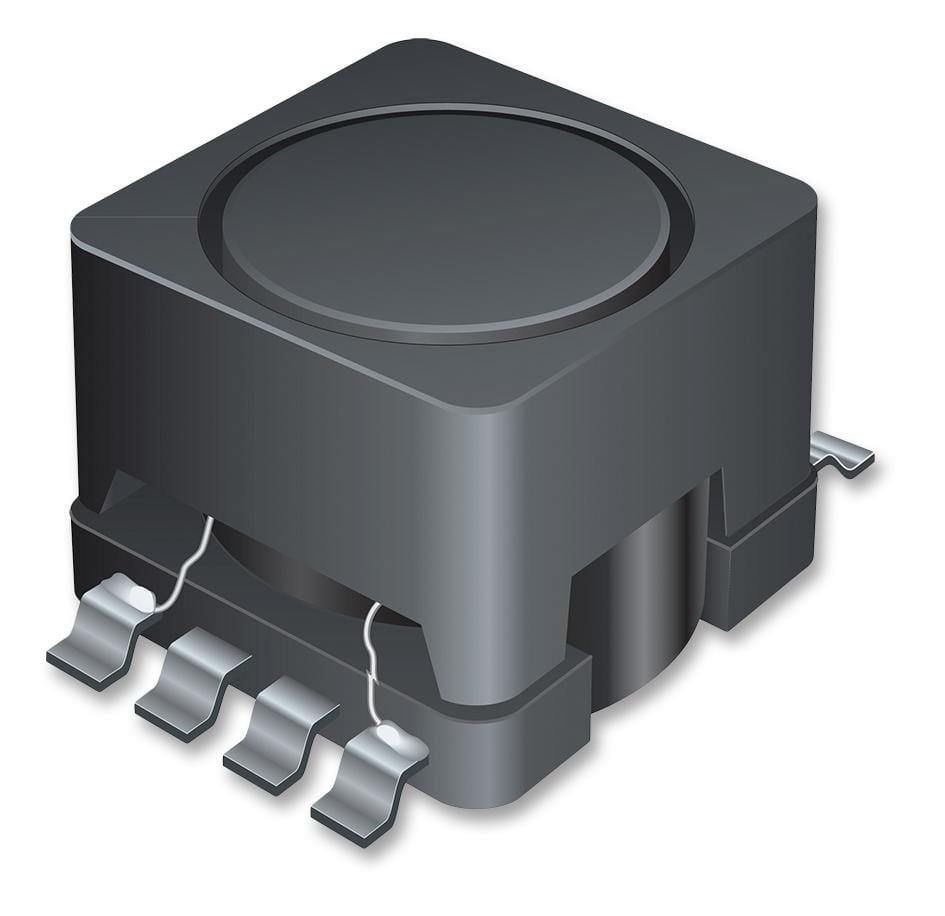

BOURNS - SRR0906-561YL - Power Inductor (SMD), 560 µH, 280 mA, Shielded, 350 mA, SRR0906
- Inductance: 560µH
- RMS Current (Irms): 280mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 350mA
- Product Range: SRR0906 Series
- Power Inductor Case: 10mm x 9.5mm x 6mm
- DC Resistance Max: 2.7ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 8Pins
- Q Factor: 60
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 3.2MHz
