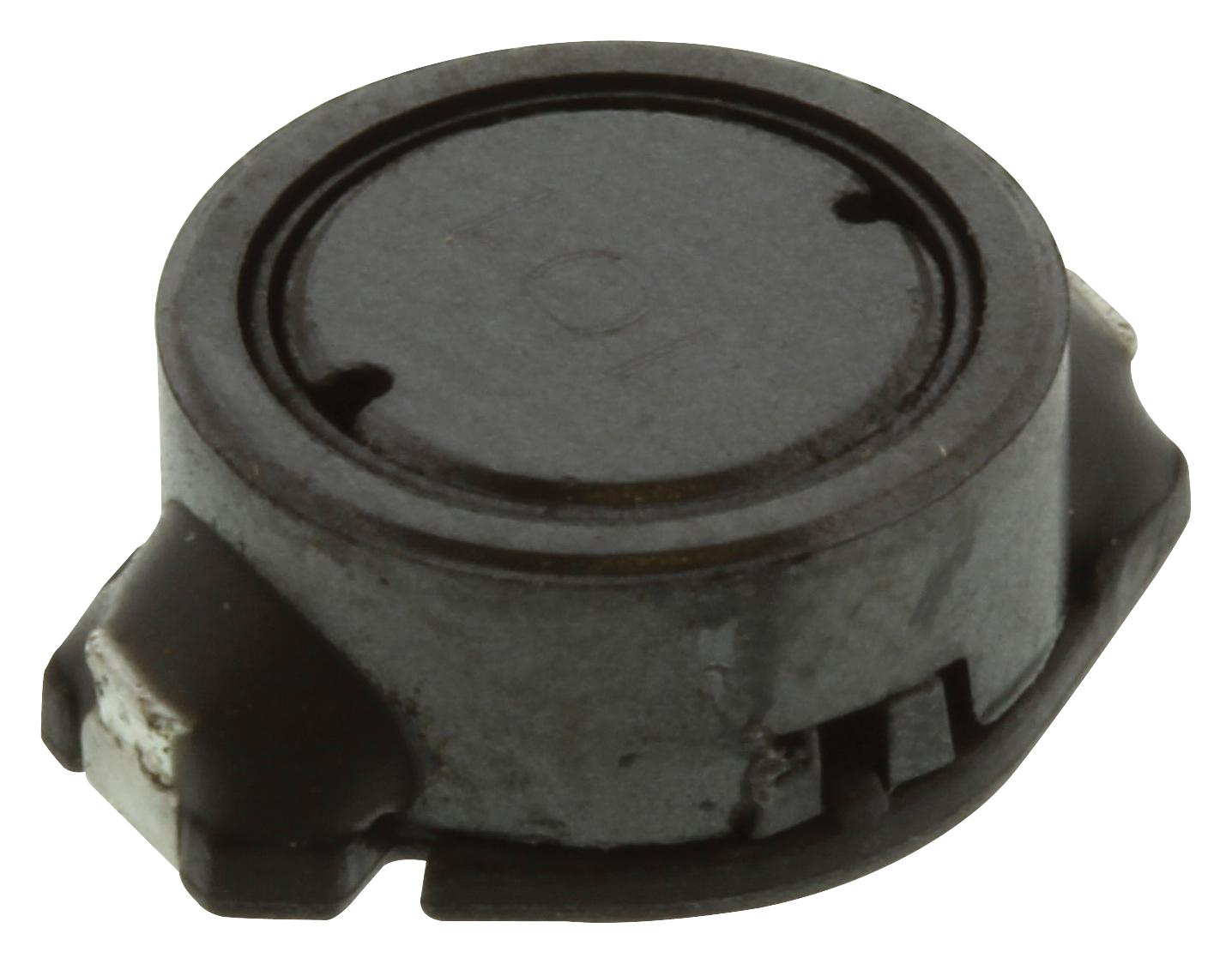

BOURNS - SRR1005-101K - Power Inductor (SMD), 100 µH, 680 mA, Shielded, 900 mA, SRR1005
- Inductance: 100µH
- RMS Current (Irms): 680mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 900mA
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 0.42ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 35
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 7.5MHz
