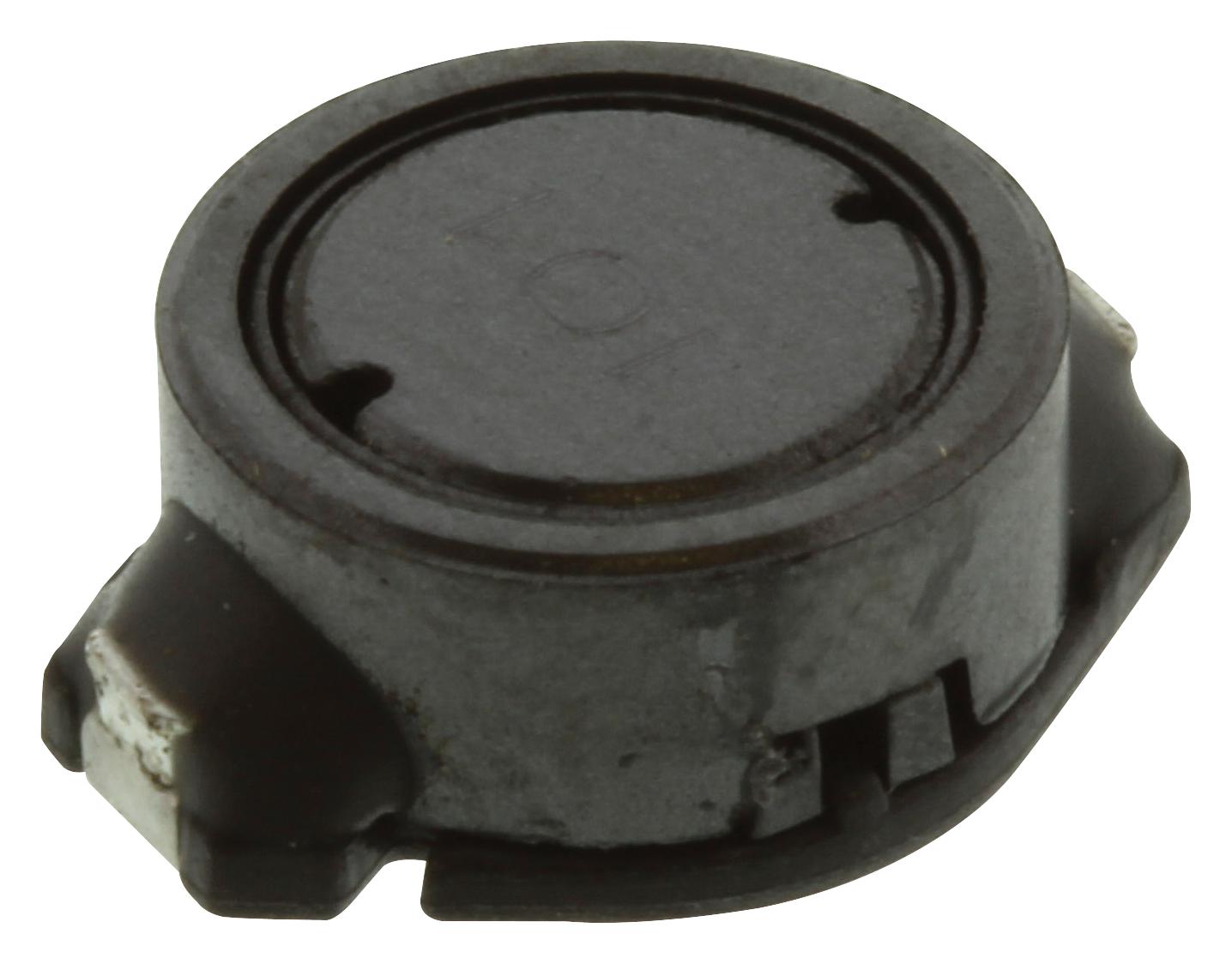

BOURNS - SRR1005-182K - Power Inductor (SMD), 1.8 mH, 160 mA, Shielded, 230 mA, SRR1005, 12.7mm x 10mm x 5.2mm
- Inductance: 1.8mH
- RMS Current (Irms): 160mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 230mA
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 5.7ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 65
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 1.4MHz
