description

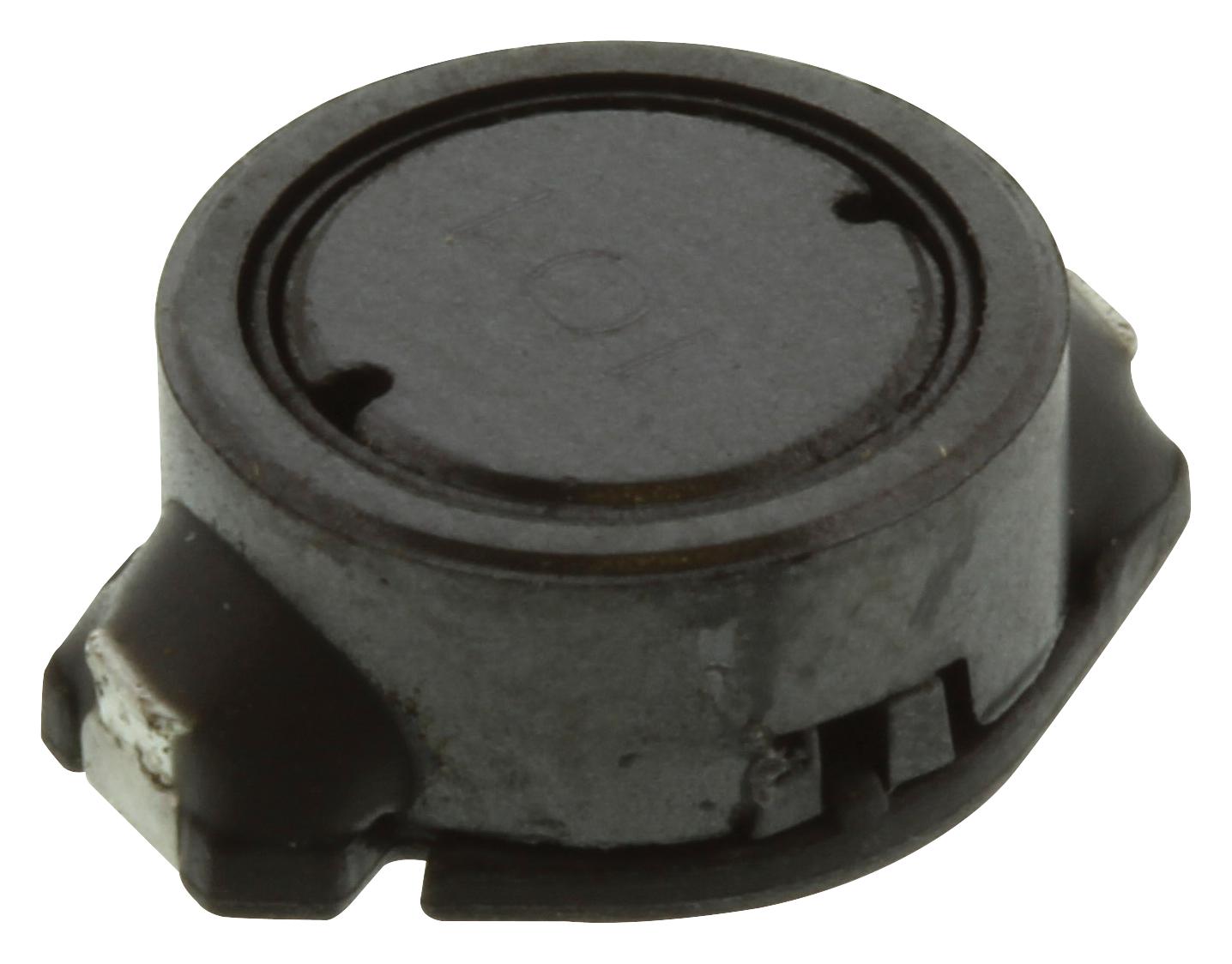

BOURNS - SRR1005-561K - Power Inductor (SMD), 560 µH, 280 mA, Shielded, 420 mA, SRR1005
- Inductance: 560µH
- RMS Current (Irms): 280mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 420mA
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 1.8ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 40
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 2.7MHz
