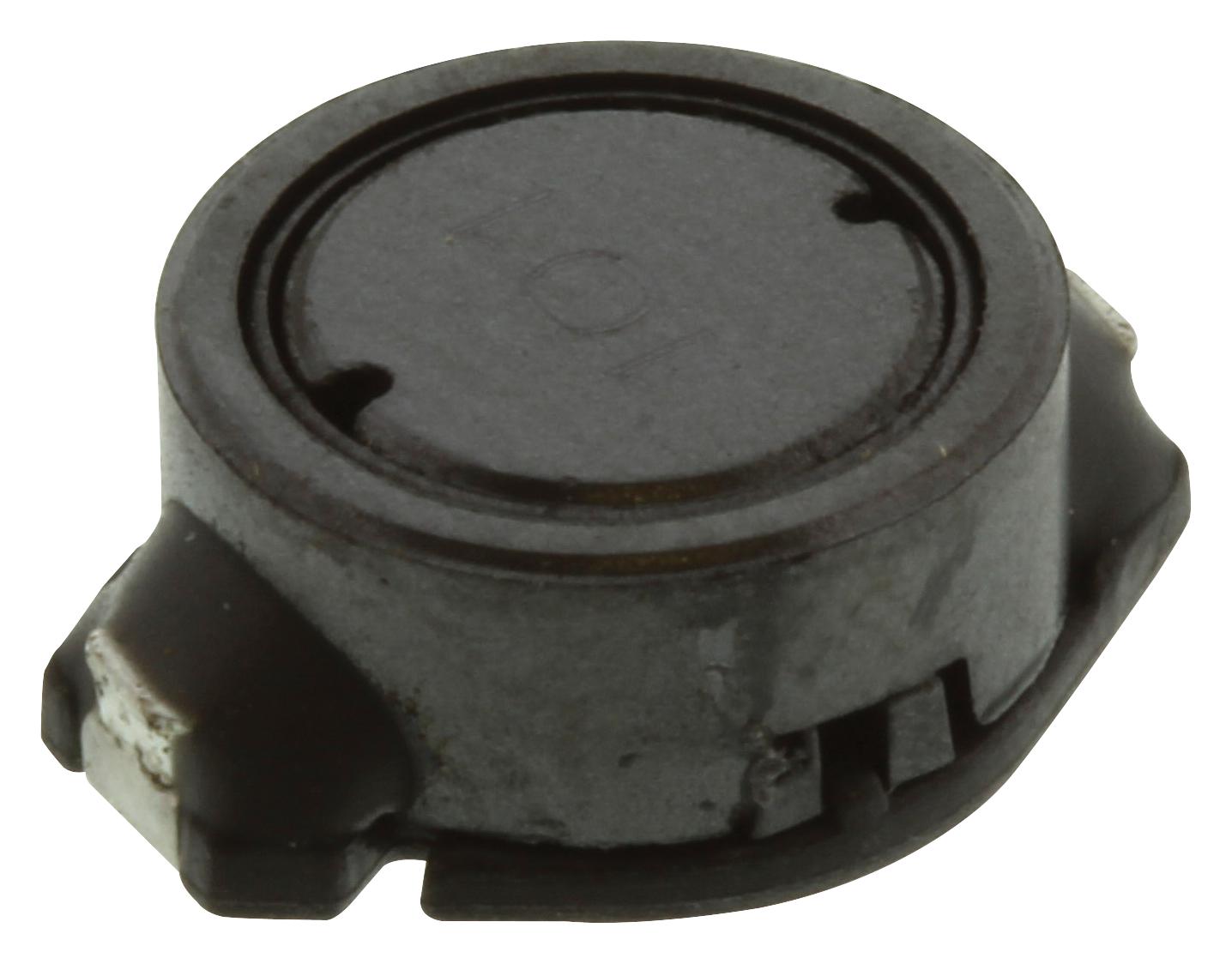

BOURNS - SRR1005-821K - Power Inductor (SMD), 820 µH, 240 mA, Shielded, 360 mA, SRR1005, 12.7mm x 10mm x 5.2mm
- Inductance: 820µH
- RMS Current (Irms): 240mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 360mA
- Product Range: SRR1005 Series
- Power Inductor Case: 12.7mm x 10mm x 5.2mm
- DC Resistance Max: 2.6ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 37
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 2.5MHz
