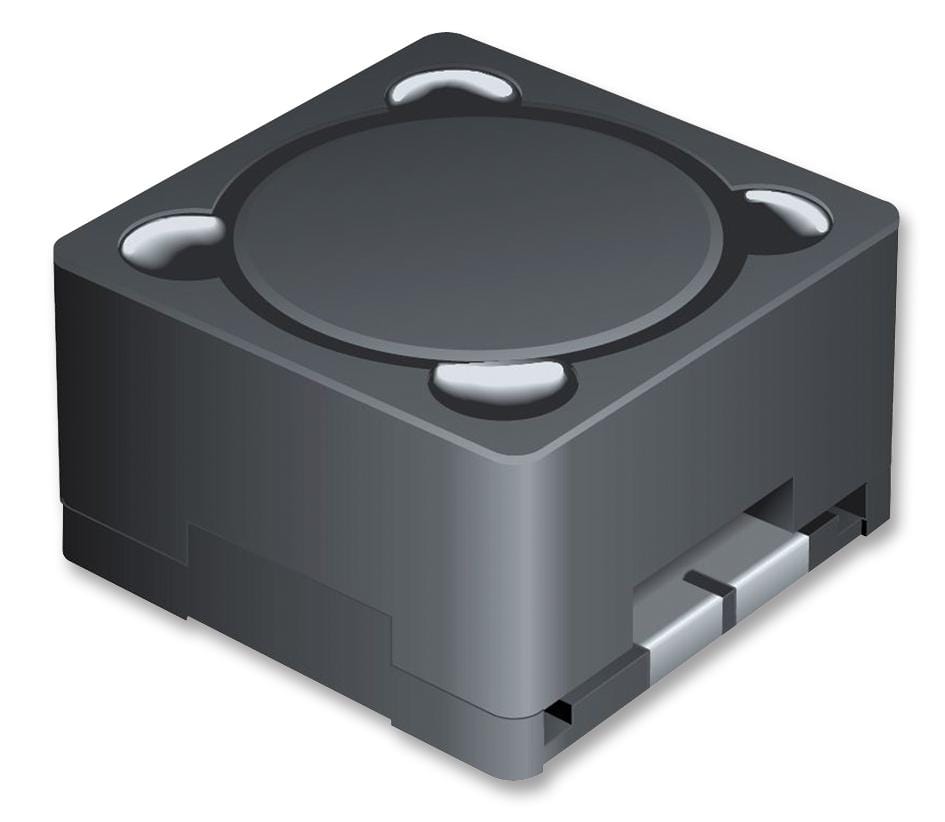

BOURNS - SRR1206-561KL - Power Inductor (SMD), 560 µH, 450 mA, Shielded, 800 mA, SRR1206, 12.7mm x 12.7mm x 6.5mm
- Inductance: 560µH
- RMS Current (Irms): 450mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 800mA
- Product Range: SRR1206 Series
- Power Inductor Case: 12.7mm x 12.7mm x 6.5mm
- DC Resistance Max: 1.32ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 13
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 2MHz
