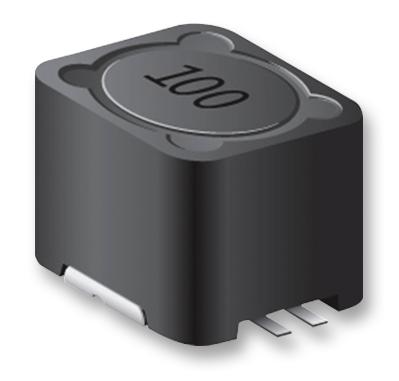

BOURNS - SRR1210A-391M - Power Inductor (SMD), 390 µH, 1.3 A, Shielded, 1.1 A, SRR1210A, 12mm x 12mm x 10mm
- Inductance: 390µH
- RMS Current (Irms): 1.3A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.1A
- Product Range: SRR1210A Series
- Power Inductor Case: 12mm x 12mm x 10mm
- DC Resistance Max: 0.6ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Automotive Qualification Standard: AEC-Q200
