description

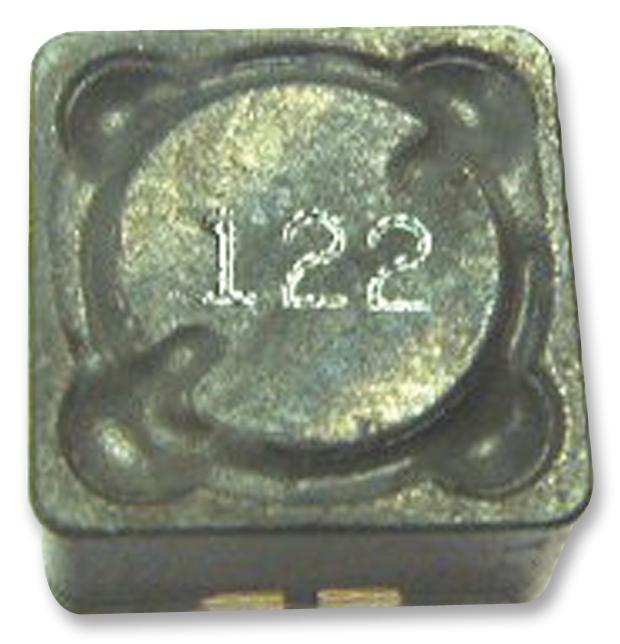

BOURNS - SRR1260-560M - Power Inductor (SMD), 56 µH, 2.3 A, Shielded, 2.2 A
- Inductance: 56µH
- RMS Current (Irms): 2.3A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.2A
- Product Range: -
- DC Resistance Max: 0.1ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 6mm
- External Length / Height: 12.5mm
- External Width: 12.5mm
- Inductor Type: Shielded Power Choke
- Operating Temperature Max: 125°C
- Operating Temperature Min: 40°C
- Resonant Frequency: 7.92MHz
- Self Resonant Frequency Min: 7.92MHz
- Test Frequency: 2.52MHz
