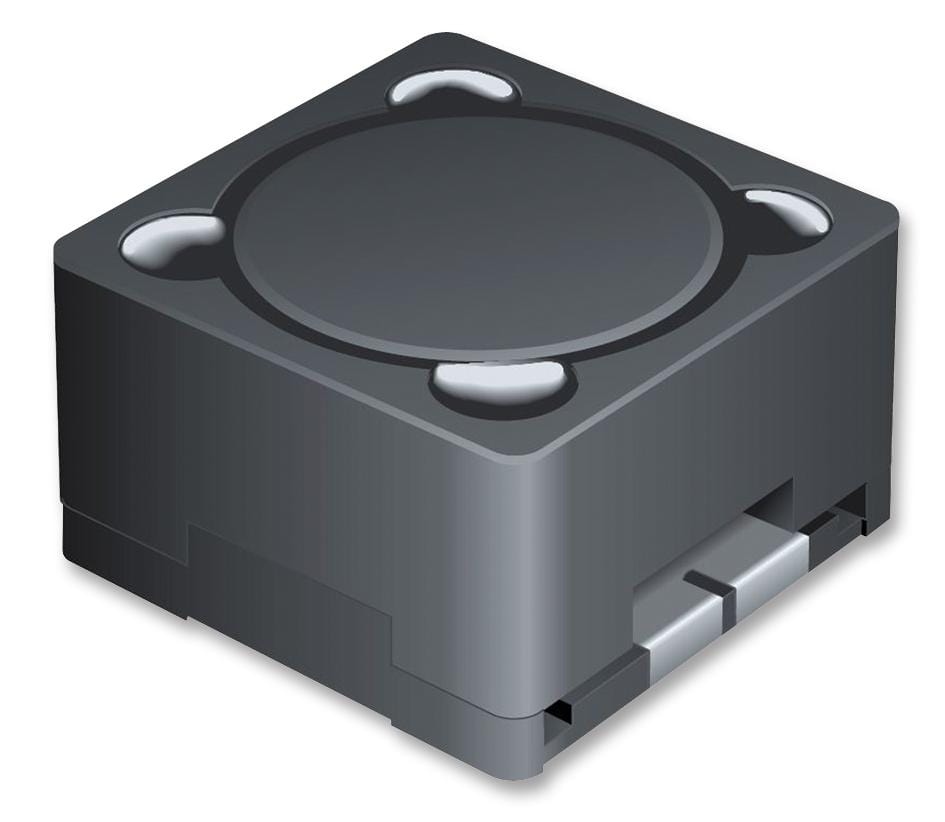

BOURNS - SRR1280-181K - Power Inductor (SMD), 180 µH, 1.75 A, Shielded, 1.88 A, SRR1280, 12.5mm x 12.5mm x 7.5mm
- Inductance: 180µH
- RMS Current (Irms): 1.75A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.88A
- Product Range: SRR1280 Series
- Power Inductor Case: 12.5mm x 12.5mm x 7.5mm
- DC Resistance Max: 0.3ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 24
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 4MHz
