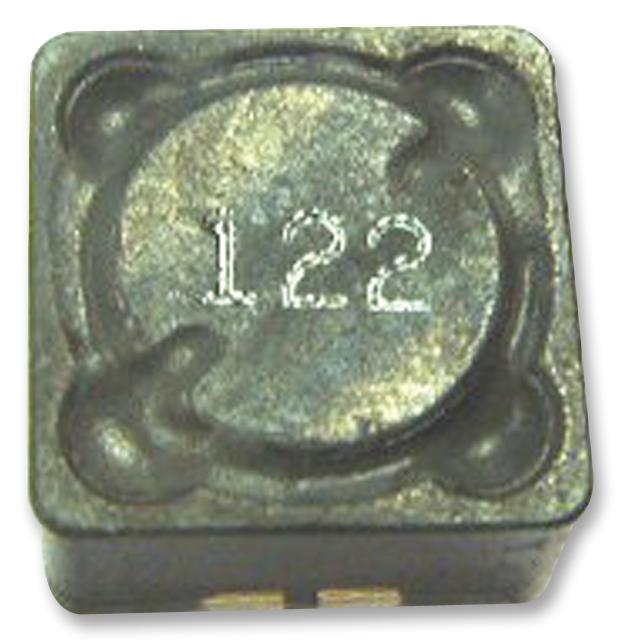

BOURNS - SRR1280-330M - Power Inductor (SMD), 33 µH, 3.5 A, Shielded, 3.3 A, SRR1280
- Inductance: 33µH
- RMS Current (Irms): 3.5A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.3A
- Product Range: SRR1280 Series
- Power Inductor Case: 12.5mm x 12.5mm x 7.5mm
- DC Resistance Max: 0.057ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 7.5mm
- External Length / Height: 12.5mm
- External Width: 12.5mm
- Inductor Type: Shielded Power Choke
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: 40°C
- Q Factor: 28
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 9.5MHz
- Self Resonant Frequency Min: 9.5MHz
- Test Frequency: 2.52MHz
