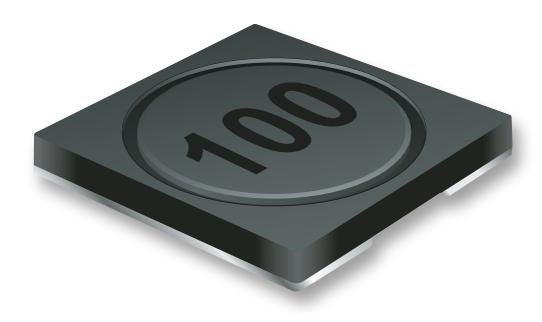

BOURNS - SRR4011-1R5YL - Power Inductor (SMD), 1.5 µH, 2.3 A, Shielded, 2.1 A, SRR4011, 4.8mm x 4.8mm x 1.15mm
- Inductance: 1.5µH
- RMS Current (Irms): 2.3A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.1A
- Product Range: SRR4011 Series
- Power Inductor Case: 4.8mm x 4.8mm x 1.15mm
- DC Resistance Max: 0.056ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 4.8mm
- External Length / Height: 1.15mm
- External Width: 4.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 11
- Q Test Frequency: 7.96MHz
- Resonant Frequency: 121MHz
- Self Resonant Frequency Min: 121MHz
- Test Frequency: 7.96MHz
