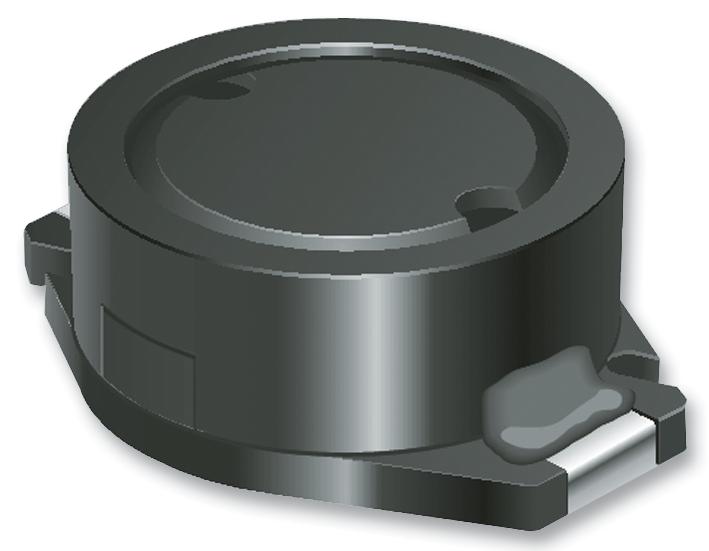

BOURNS - SRR6603-330ML - Power Inductor (SMD), 33 µH, 600 mA, Shielded, 240 mA, SRR6603
- Inductance: 33µH
- RMS Current (Irms): 600mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 240mA
- Product Range: SRR6603 Series
- Power Inductor Case: 6.6mm x 4.4mm x 3mm
- DC Resistance Max: 0.19ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 40
- Q Test Frequency: 100kHz
- Self Resonant Frequency Min: 20MHz
