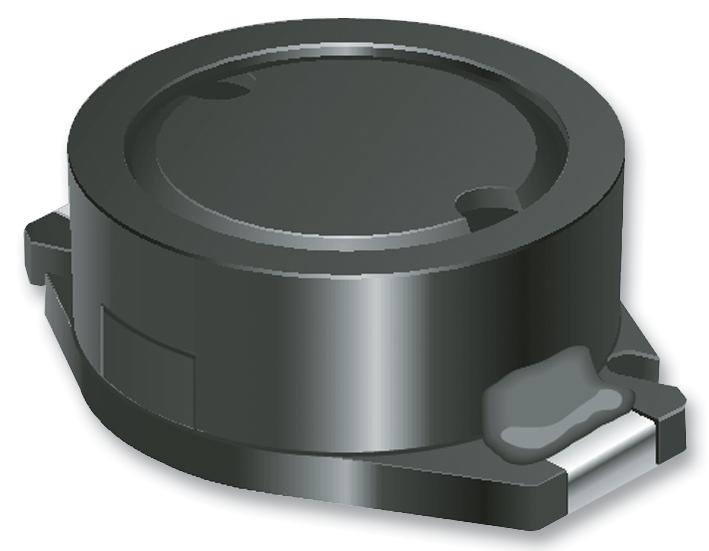

BOURNS - SRR6603-472ML - Power Inductor (SMD), 4.7 mH, 60 mA, Shielded, 21 mA, SRR6603
- Inductance: 4.7mH
- RMS Current (Irms): 60mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 21mA
- Product Range: SRR6603 Series
- Power Inductor Case: 6.6mm x 4.4mm x 3mm
- DC Resistance Max: 13.9ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 50
- Q Test Frequency: 100kHz
- Self Resonant Frequency Min: 1MHz
