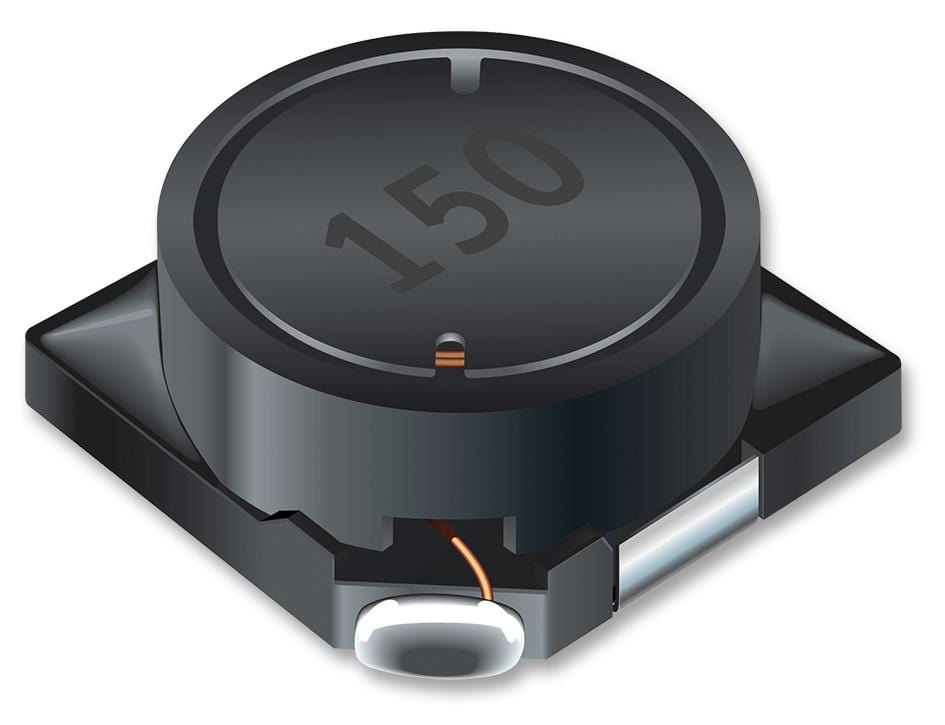

BOURNS - SRR7032-151M - Power Inductor (SMD), 150 µH, 370 mA, Shielded, 380 mA, SRR7032, 7mm x 7mm x 3.2mm
- Inductance: 150µH
- RMS Current (Irms): 370mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 380mA
- Product Range: SRR7032 Series
- Power Inductor Case: 7mm x 7mm x 3.2mm
- DC Resistance Max: 0.8ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 35
- Q Test Frequency: 796kHz
- Self Resonant Frequency Min: 10MHz
