description

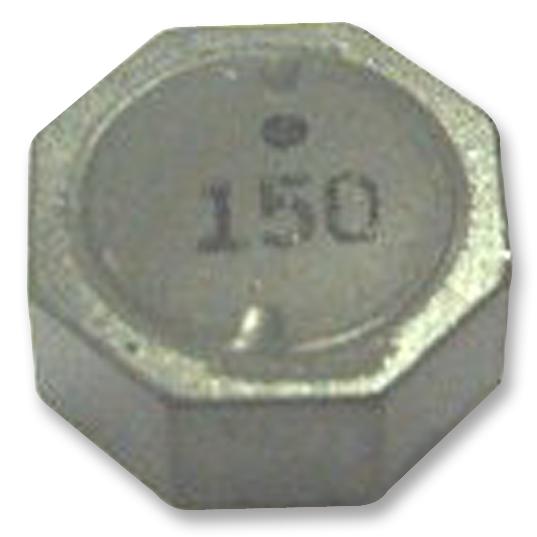

BOURNS - SRU5018-1R0Y - Power Inductor (SMD), 1 µH, 2.8 A, Shielded, 2.85 A, 5.2mm x 5.2mm x 1.8mm
- Inductance: 1µH
- RMS Current (Irms): 2.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.85A
- Product Range: -
- Power Inductor Case: 5.2mm x 5.2mm x 1.8mm
- DC Resistance Max: 0.0125ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 1.8mm
- External Length / Height: 5.2mm
- External Width: 5.2mm
- Inductor Type: Shielded Power Choke
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 9
- Q Test Frequency: 7.96MHz
- Resonant Frequency: 200MHz
- Self Resonant Frequency Min: 200MHz
- Test Frequency: 7.96MHz
