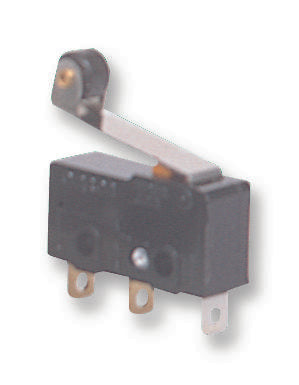

OMRON - SS-10GL2 - Microswitch, Snap Action, Lever, SPDT, Solder, 10.1 A
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 10.1A
- Contact Voltage DC Nom: -
- Product Range: SS Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 1.47N
- Actuation Type: Roller Lever
- Actuator Type: Hinge Roller Lever
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Contact Current AC: 10A
- Contact Current AC Max: 10.1A
- Contact Current DC Max: 5A
- Contact Resistance: 30mohm
- Contact Voltage AC Max: 125V
- Contact Voltage DC Max: 250V
- Dielectric Strength VDC: 1000VAC
- Differential Travel Max: 1mm
- External Depth: 19.8mm
- External Length / Height: 10.2mm
- External Width: 6.4mm
- Fixing Centres: 8.8mm
- IP / NEMA Rating: IP40
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 50000
- No. of Mechanical Operations: 10000000
- Operating Force: 0.49N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -15°C
- Over Travel Min: 1mm
- Release Force: 6gf
- Tab Width: 3.2mm
