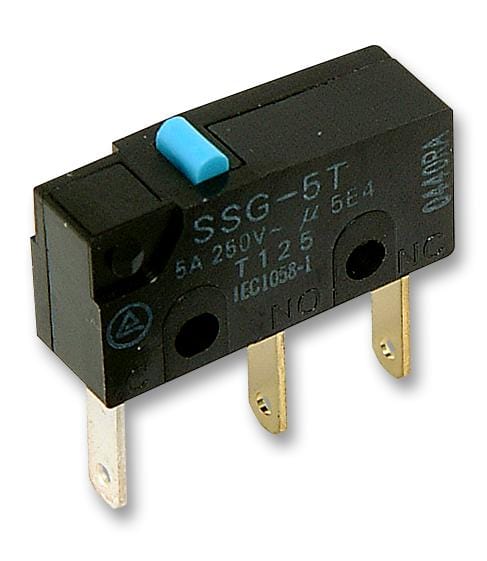

OMRON - SSG-5T - Microswitch, Snap Action, Plunger, SPDT, Solder, 5 A, 250 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Plunger
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 5A
- Contact Voltage DC Nom: 250VDC
- Product Range: SS Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 1.5N
- Actuation Type: Plunger
- Actuator Type: Plunger
- Contact Current AC: 3A
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Rating: 3A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 250V
- Differential Travel Max: 0.1mm
- External Depth: 6.4mm
- External Length / Height: 7.7mm
- External Width: 19.8mm
- Fixing Centres LxW: 9.5mm
- No. of Electrical Operations: 200000
- No. of Mechanical Operations: 10000000
- Operating Force: 1.5N
- Operating Temperature Max: 125°C
- Operating Temperature Min: 25°C
- Over Travel Min: 0.4mm
- Pre-travel: 0.6mm
- Release Force: 25gf
