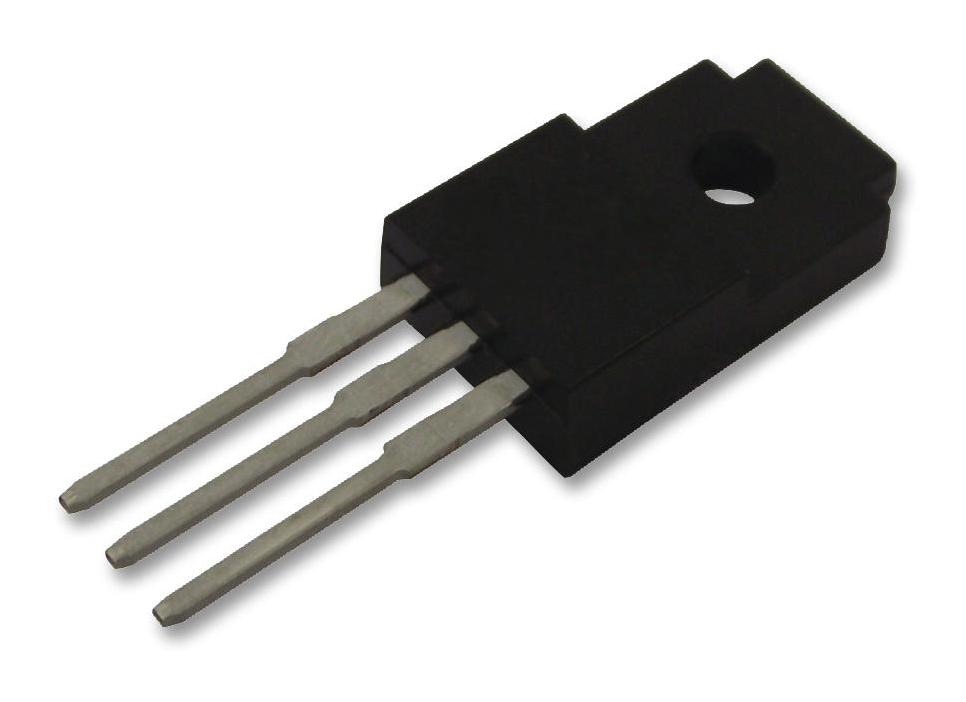

STF19NF20 MOSFET, N Ch, 200V, 15A, TO-220FP STMICROELECTRONICS

STMICROELECTRONICSUGS :STF19NF20 Code de commande:1752079

Prix:
Prix ​​promotionnel€3,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 2 produits disponibles

Documents et téléchargements

description

STMICROELECTRONICS - STF19NF20 - Power MOSFET, N Channel, 200 V, 7.5 A, 0.15 ohm, TO-220FP, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 7.5A
  • Drain Source Voltage Vds: 200V
  • On Resistance Rds(on): 0.15ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 25W
  • Transistor Case Style: TO-220FP
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Current Id Max: 15A
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Through Hole
  • Transistor Type: Power MOSFET
  • Voltage Vds Typ: 200V
  • Voltage Vgs Max: 20V
  • Voltage Vgs Rds on Measurement: 10V
