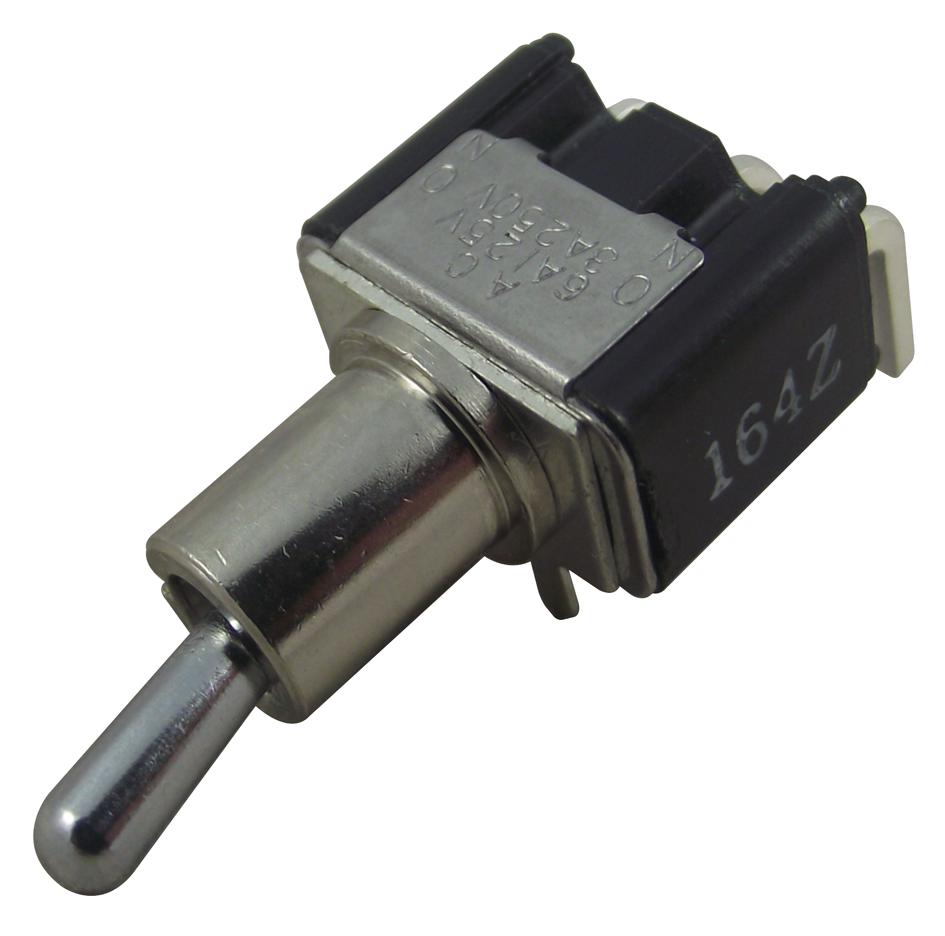

STM 106 D-Ra Toggle Switch, Miniature Knitter-Switch

KNITTER-SWITCHUGS :STM 106 D-RA Code de commande:1218905

Prix:
Prix ​​promotionnel€20,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (201 unité)

Documents et téléchargements

description

KNITTER-SWITCH - STM 106 D-RA - Toggle Switch, On-On, SPDT, Non Illuminated, STM, Through Hole, 6 A

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: STM Series
  • Contact Current Max: 6A
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 250V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 30V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Lever
  • Contact Current @ Contact Voltage AC Max: 3A
  • Contact Current @ Contact Voltage DC Max: 4A
  • Contact Current AC: 3A
  • Contact Current AC Max: 6A
  • Contact Current DC Max: 6A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • External Depth: 8mm
  • External Length / Height: 18mm
  • External Width: 13mm
  • Height: 18mm
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Proof Voltage: 1000V
  • Repeatability: 100000
  • Tab Blade Thickness: 1.1mm
