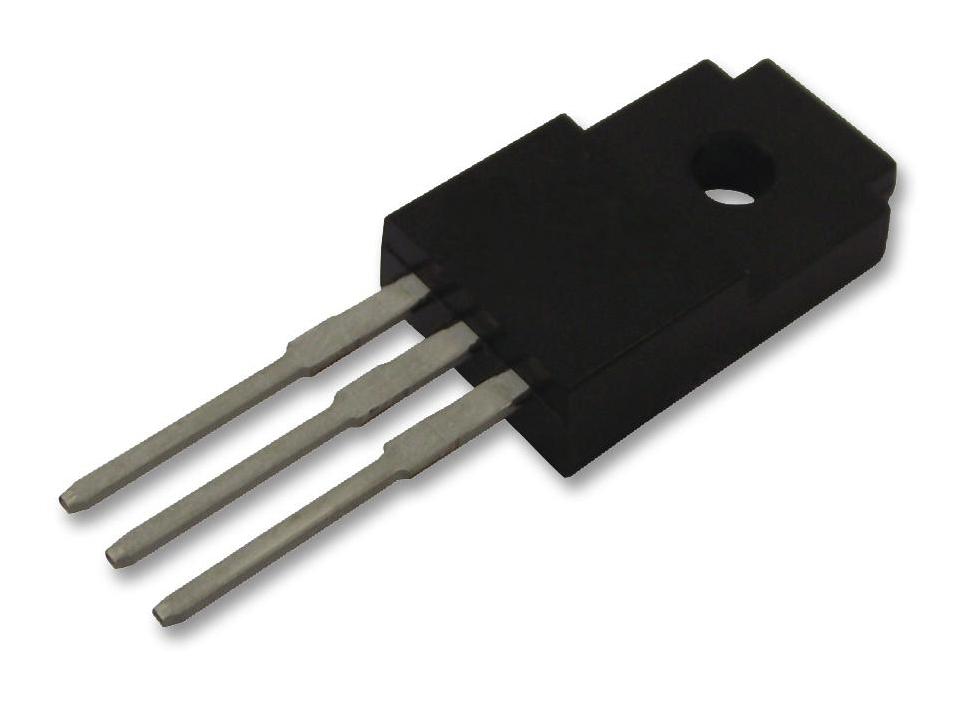

STP6NK90ZFP MOSFET, N, TO-220FP STMICROELECTRONICS

STMICROELECTRONICSUGS :STP6NK90ZFP Code de commande:1291986

Prix:
Prix ​​promotionnel€4,97

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1752 unité)

Documents et téléchargements

description

STMICROELECTRONICS - STP6NK90ZFP - Power MOSFET, N Channel, 900 V, 5.8 A, 1.56 ohm, TO-220FP, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 5.8A
  • Drain Source Voltage Vds: 900V
  • On Resistance Rds(on): 1.56ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3.75V
  • Power Dissipation Pd: 30W
  • Transistor Case Style: TO-220FP
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Avalanche Single Pulse Energy Eas: 300mJ
  • Capacitance Ciss Typ: 1350pF
  • Current Iar: 5.8A
  • Current Id Max: 5.8A
  • On State resistance @ Vgs = 10V: 2ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pulse Current Idm: 23.2A
  • Termination Type: Through Hole
  • Voltage Vds: 900V
  • Voltage Vds Typ: 900V
  • Voltage Vgs Max: 30V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Max: 4.5V
  • Voltage Vgs th Min: 3V
