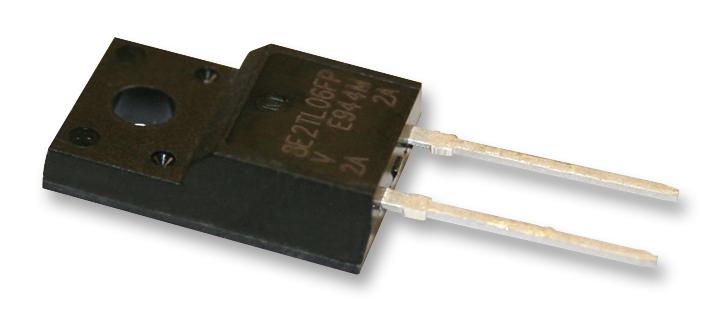

STMICROELECTRONICS - STTH5L06FP - Standard Recovery Diode, 600 V, 5 A, Single, 1.3 V, 95 ns, 90 A
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 5A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.3V
- Reverse Recovery Time trr Max: 95ns
- Forward Surge Current Ifsm Max: 90A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220FP
- No. of Pins: 2Pins
- Product Range: STTH5 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Case Temperature Tc @ If: 135°C
- Current If @ Vf: 5A
- Current Ifsm: 90A
- Current Ir Max: 5µA
- Current Temperature: 135°C
- Diode Type: Fast Recovery
- Forward Voltage: 1.3V
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2 Pin
- Pin Configuration: 1K,2A
- Reverse Recovery Time trr Typ: 65ns
