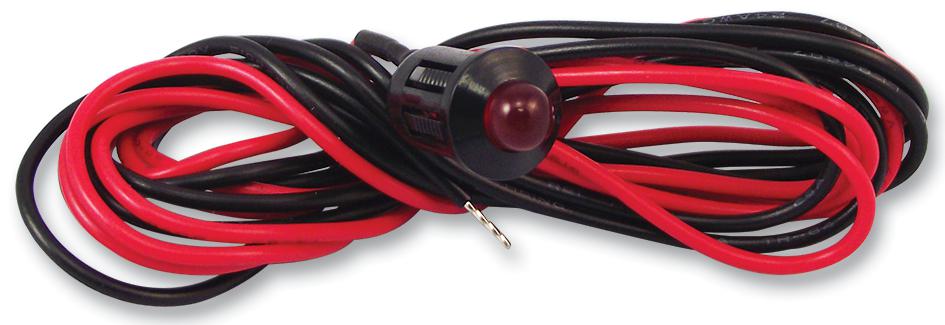

CML INNOVATIVE TECHNOLOGIES - T000209 - LED Panel Mount Indicator, Snap-in, Red, 12 VDC, 8 mm, Not Rated
- LED Colour: Red
- Operating Voltage: 12VDC
- Mounting Hole Dia: 8mm
- Forward Current If: -
- Luminous Intensity: -
- IP / NEMA Rating: Not Rated
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Bezel Diameter: 9.5mm
- Bulb Size: 5mm
- External Diameter: 9.5mm
- Fixing Hole Diameter: 8mm
- Forward Current If Max: 16mA
- Forward Voltage: 12V
- Forward Voltage VF Max: 12V
- LED / Lamp Size: 5mm
- Lead Length: 900mm
- Length Behind Bezel: 10mm
- Lens Shape: Dome
- Luminous Intensity Typ: 70mcd
- Material: Black Plastic Bezel
- Operating Temperature Max: 50°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +50°C
- Panel Thickness Max: 3mm
- Peak Wavelength: 625nm
- Supply Voltage V DC: 12V
- Voltage Rating V DC: 12V
- Voltage Vf Typ: 12VDC
- Wavelength Typ: 625nm
