T108MH9CBE Switch, Pcb, SPDT, Biased C&K Components

C&K COMPONENTSUGS :T108MH9CBE Code de commande:9575650

Prix:
Prix ​​promotionnel€19,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (89 unité)

Documents et téléchargements

description

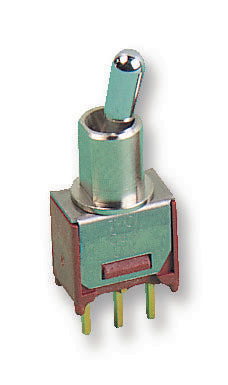

C&K COMPONENTS - T108MH9CBE - Toggle Switch, On-(On), SPDT, Non Illuminated, T, Through Hole

  • Switch Operation: On-(On)
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: T Series
  • Contact Current Max: -
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Lever
  • Bush Thread Length: 5.59mm
  • Contact Current @ Contact Voltage AC Max: 20A
  • Contact Current Rating: 0.4A
  • Contact Resistance: 20mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • External Depth: 8.13mm
  • External Length / Height: 8.64mm
  • External Width: 5mm
  • Height: 8.64mm
  • No. of Electrical Operations: 60000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
