T201MH9CBE Switch, Pcb, DPDT C&K Components

C&K COMPONENTSUGS :T201MH9CBE Code de commande:9575669

Prix:
Prix ​​promotionnel€22,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (20 unité)

Documents et téléchargements

description

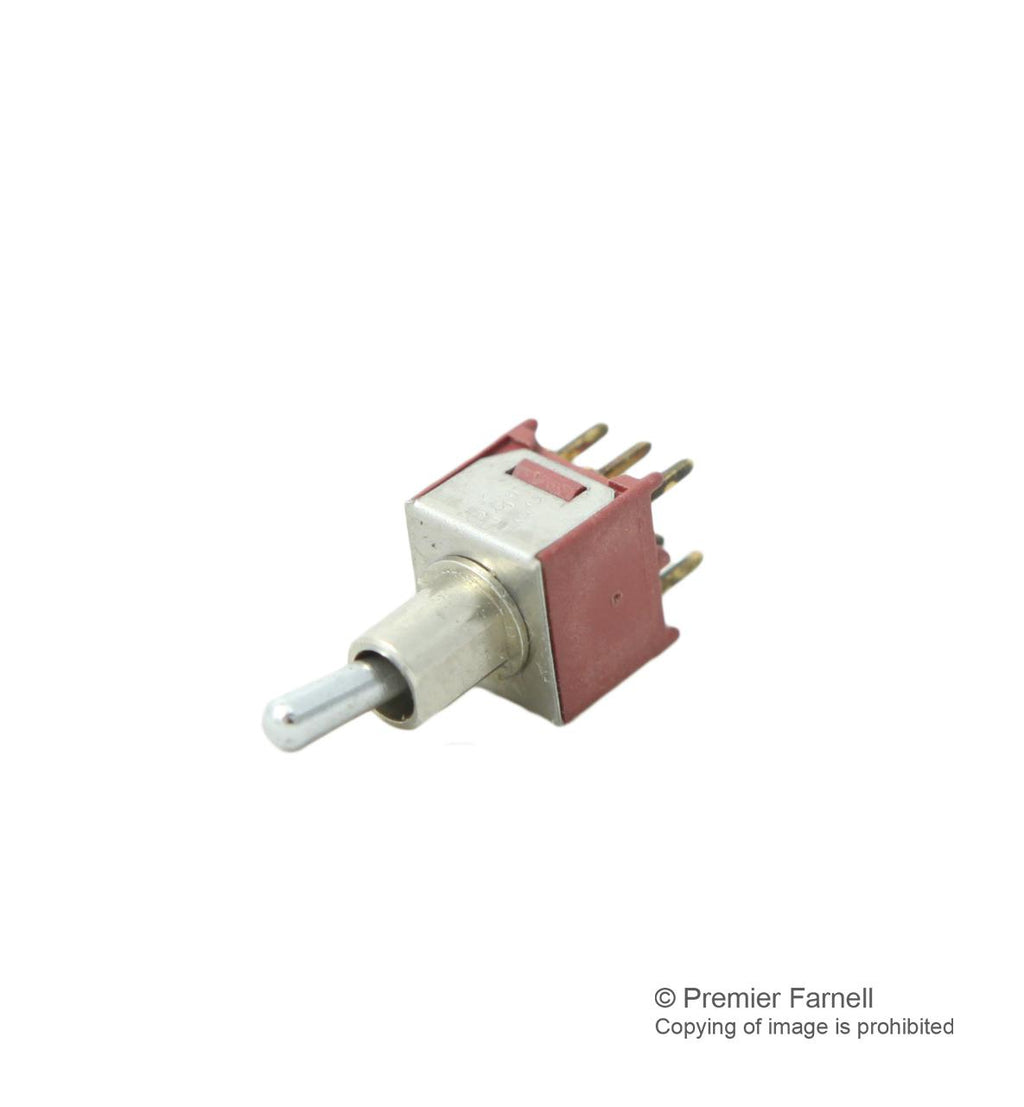

C&K COMPONENTS - T201MH9CBE - Toggle Switch, On-On, DPDT, Non Illuminated, T, Through Hole

  • Switch Operation: On-On
  • Contact Configuration: DPDT
  • Illumination: Non Illuminated
  • Product Range: T Series
  • Contact Current Max: -
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: Lead (15-Jan-2019)
  • Actuation Type: Lever
  • Bush Thread Length: 5.59mm
  • Contact Current @ Contact Voltage AC Max: 20A
  • Contact Current Rating: 0.4A
  • Contact Resistance: 20mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • External Depth: 8.13mm
  • External Length / Height: 8.64mm
  • External Width: 9.1mm
  • Height: 8.64mm
  • No. of Electrical Operations: 60000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
