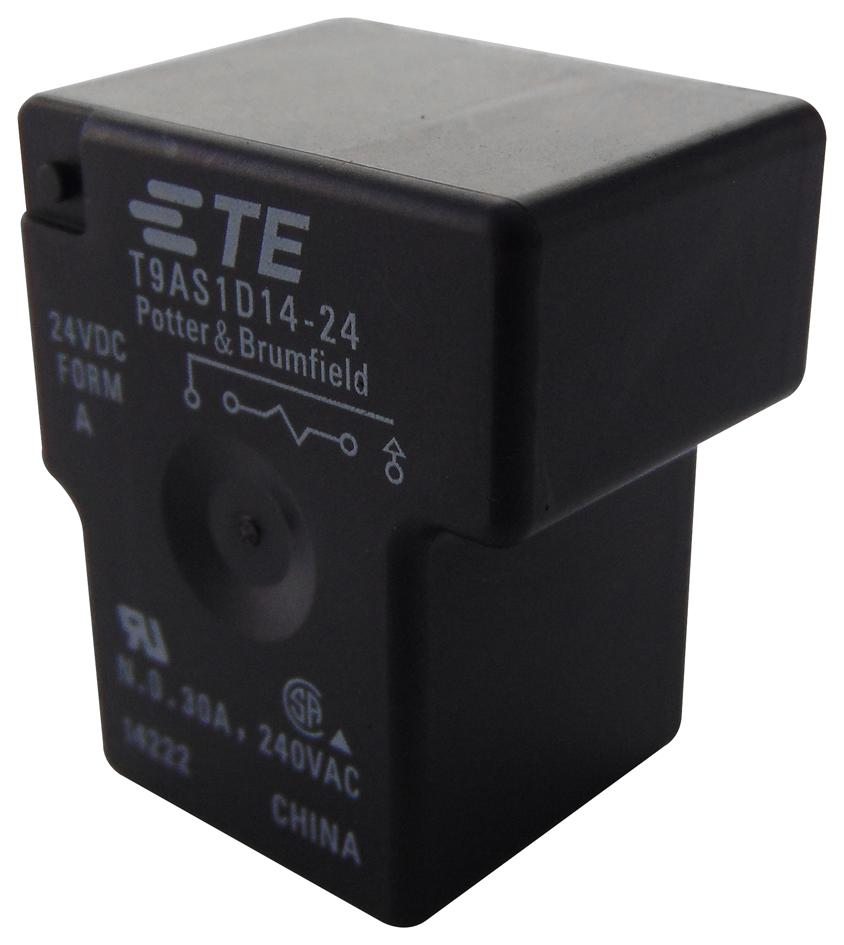

T9AS1D14-24 Relay, SPST, 240Vac, 30A Te Connectivity

TE CONNECTIVITYUGS :6-1423091-3 Code de commande:1629061

Prix:
Prix ​​promotionnel€10,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (644 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 6-1423091-3 - General Purpose Relay, T9A Series, Power, Non Latching, SPST, 24 VDC, 30 A

  • Contact Configuration: SPST
  • Coil Voltage: 24VDC
  • Contact Current: 30A
  • Product Range: T9A Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Tin Indium Oxide
  • Coil Resistance: 576ohm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, UL
  • Coil Current: 42mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 30A
  • Contact Current Max: 30A
  • Contact Current Min: 1A
  • Contact Resistance: 75mohm
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 240V
  • DC Coil Power: 1W
  • Dielectric Voltage Coil to Contact: 2500V
  • Dielectric Voltage Contact to Contact: 1500V
  • External Depth: 32.51mm
  • External Height: 20.4mm
  • External Length / Height: 20.4mm
  • External Width: 27.43mm
  • Insulation Resistance: 1000Mohm
  • Insulation Resistance Voltage: 500VDC
  • No. of Mechanical Operations: 10000000
  • Nom Operating Power: 1W
  • Operating Temperature Max: 85°C
