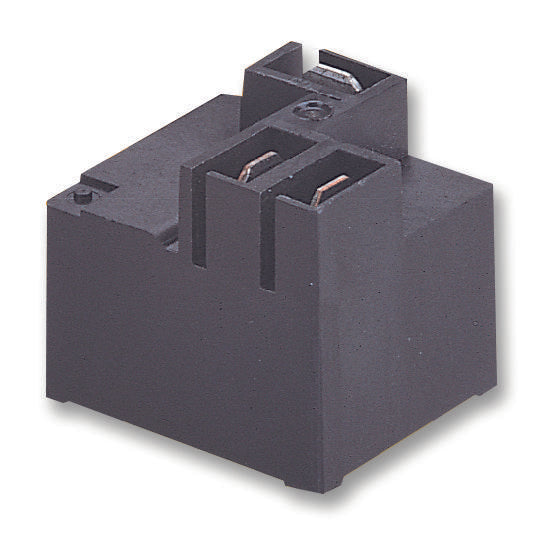

POTTER&BRUMFIELD - TE CONNECTIVITY - 3-1419104-6 - Power Relay, SPDT, 24 VDC, 20 A, T9A Series, Through Hole, Non Latching
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 30A
- Product Range: T9A Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 28VDC
- Contact Material: Silver Cadmium Oxide
- Coil Resistance: 576ohm
- SVHC: Cadmium oxide (27-Jun-2018)
- Approvals & Standards: CSA, UL
- Coil Current: 42mA
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 20A
- Contact Current DC Max: 20A
- Contact Current Max: 20A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Max: 28V
- Contact Voltage DC Nom: 28V
- DC Coil Power: 1W
- Dielectric Voltage Coil to Contact: 2500VAC
- Dielectric Voltage Contact to Contact: 1500VAC
- External Depth: 28mm
- External Height: 32mm
- External Length / Height: 32mm
- External Width: 27mm
- Lead Spacing: 0.8mm
- Nom Operating Power: 1W
- Operating Temperature Max: 85°C
- Operating Time: 15ms
