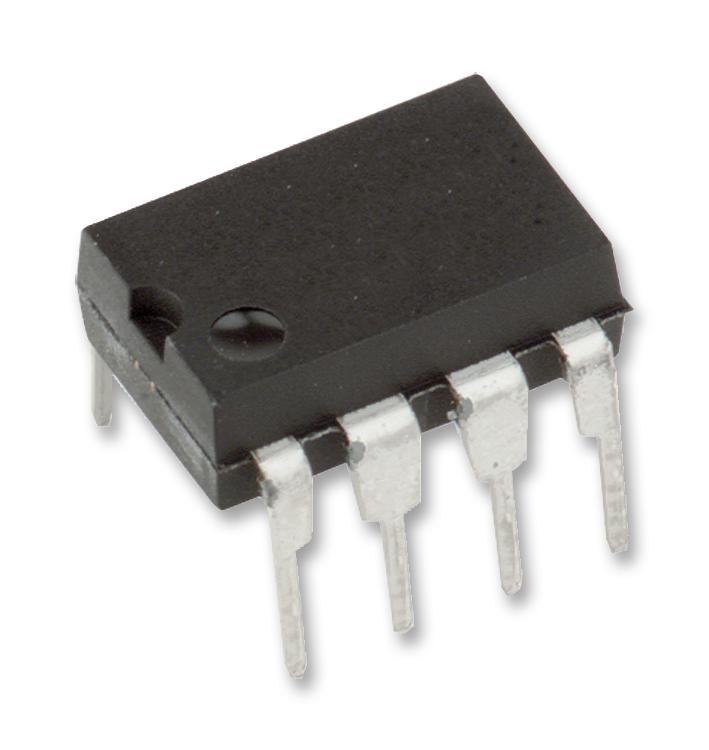

MICROCHIP - TC1411NEPA - MOSFET Driver, Low Side, 4.5V-16V supply, 1A and 8 ohm output, DIP-8
- Driver Configuration: Low Side
- Peak Output Current: 1A
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 16V
- Driver Case Style: DIP
- No. of Pins: 8Pins
- Input Delay: 30ns
- Output Delay: 30ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 1411
- Device Type: MOSFET Driver
- Module Configuration: Low Side
- Operating Temperature Range: -40°C to +85°C
- Output Resistance: 8ohm
- Supply Voltage Range: 4.5V to 16V
