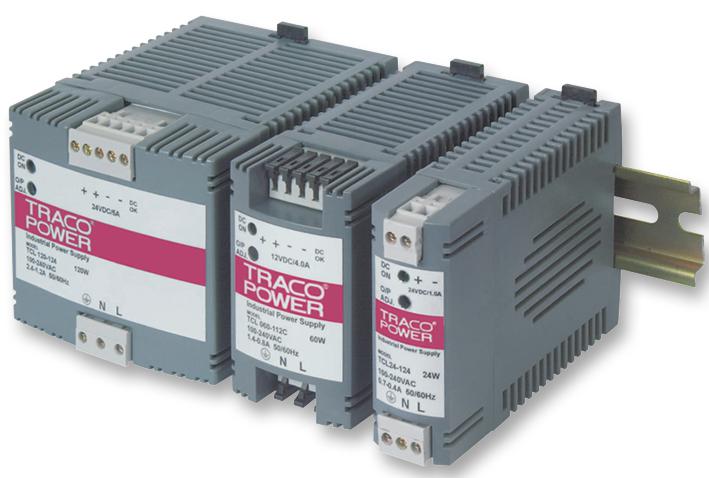

TRACO POWER - TCL 120-112 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 120 W, 12 VDC, 8 A
- No. of Outputs: 1 Output
- Output Power Max: 120W
- Output Voltage - Output 1: 12VDC
- Output Current - Output 1: 8A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Applications: Industrial
- Approval Bodies: CB, cUL, EN, IEC, UL
- External Depth: 100mm
- External Length / Height: 75mm
- External Width: 85mm
- Height: 75mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 85VAC
- Input Voltage Max: 264VAC
- Input Voltage Min: 85VAC
- Length: 100mm
- Line Regulation: 0.2%
- Load Regulation: 2.5%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Output Current: 8A
- Output Ripple Voltage pk-pk: 50mV
- Output Voltage: 12V
- Power Rating: 120W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 60Hz
