Tel 2-0511 Converter, DC/DC, 2W, 5V TRACO Power

TRACO POWERUGS :TEL 2-0511 Code de commande:1007023

Prix:
Prix ​​promotionnel€20,19

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (20 unité)

Documents et téléchargements

description

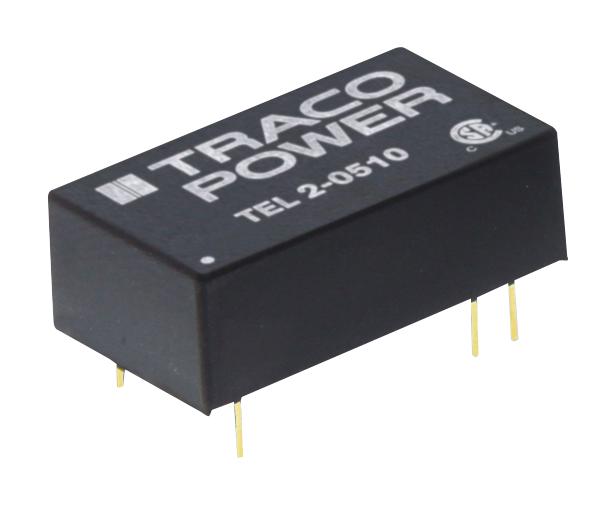

TRACO POWER - TEL 2-0511 - Isolated Through Hole DC/DC Converter, ITE, 2:1, 2 W, 1 Output, 5 V, 400 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 2W
  • Output Voltage - Output 1: 5V
  • Output Current - Output 1: 400mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: TEL 15 Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 9V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 13.7mm
  • Height: 7.2mm
  • Depth: 23.8mm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA, cUL, EN, IEC, UL
  • Approvals & Standards: CSA, IEC, UL
  • Efficiency Max: 75%
  • Isolation Voltage: 1.5kV
  • Line Regulation: 0.5%
  • Load Regulation: 0.75%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -25°C
  • Output Ripple Voltage pk-pk: 50mV
  • Power Rating: 2W
  • Supply Voltage: 5V
