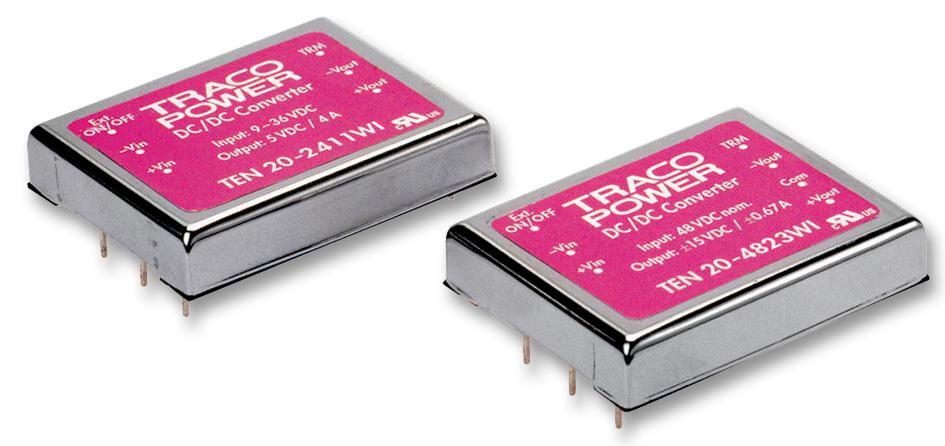

TRACO POWER - TEN 20-2412WI - Isolated Through Hole DC/DC Converter, ITE, 4:1, 20 W, 1 Output, 12 V, 1.67 A
- No. of Outputs: 1 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 1.67A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 40.6mm
- Height: 10.2mm
- Depth: 50.8mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: cUL 1950, EN/IEC 60950, UL
- Approvals & Standards: IEC, UL
- Efficiency: 81%
- External Depth: 40.6mm
- External Length / Height: 10.16mm
- External Width: 50.8mm
- Flammability Rating: UL94V-0
- Isolation Voltage: 1.6kV
- Line Regulation: 0.5%
- Load Regulation: 0.5%
- No. of Outputs: 1Outputs
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 75mV
- Power Rating: 20W
- Supply Voltage: 24V
