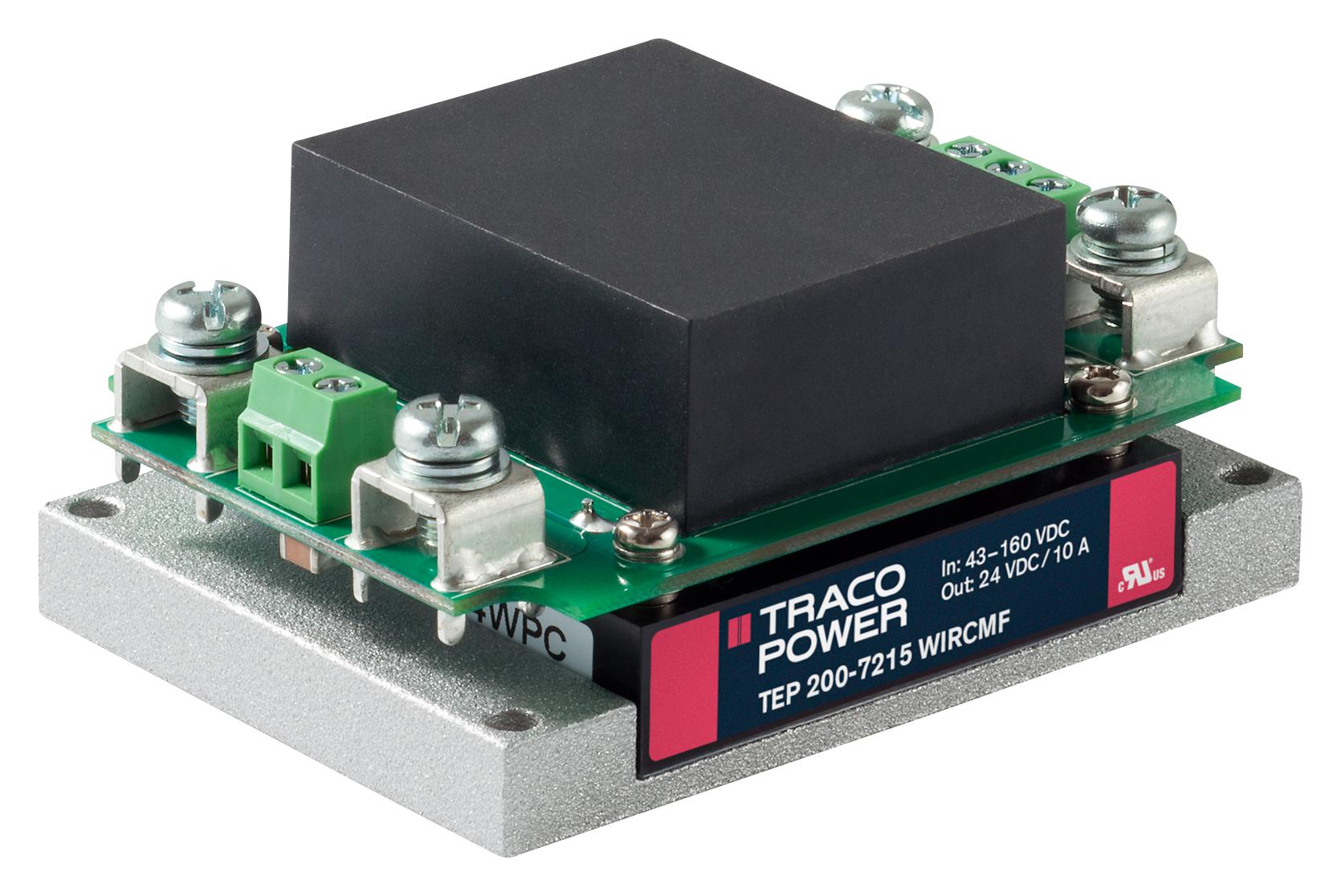

TRACO POWER - TEP 200-7215WIRCMF - Isolated Chassis Mount DC/DC Converter, Railway, 4:1, 240 W, 1 Output, 24 V, 10 A
- No. of Outputs: 1 Output
- Output Power Max: 240W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 10A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: TEP 200WIR Series
- Input Voltage DC Min: 43V
- Input Voltage DC Max: 160V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: Module
- DC / DC Converter Mounting: Chassis
- Width: 61mm
- Height: 33.8mm
- Depth: 85mm
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: IEC, UL
