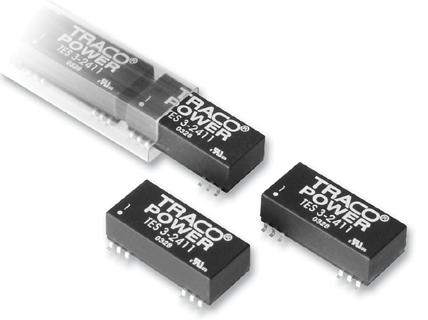

TRACO POWER - TES 3-2422 - Isolated Surface Mount DC/DC Converter, ITE, 2:1, 3 W, 2 Output, 12 V, 125 mA
- No. of Outputs: 2 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 125mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 125mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 14.8mm
- Height: 10.2mm
- Depth: 32mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, EN, IEC, UL
- Approvals & Standards: CSA, IEC, UL
- Isolation Voltage: 1.5kV
- No. of Outputs: 2Outputs
- Output Voltage +: 12VDC
- Output Voltage -: -12VDC
- Power Rating: 3W
- Supply Voltage: 24V
