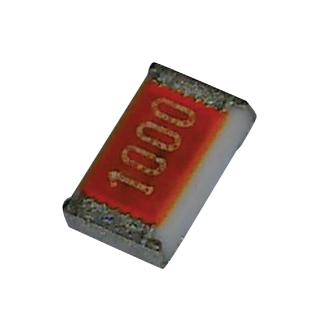

TFPT0805L1001FV Thermistor, PTC, 0805, 1%, 1K Vishay

VISHAYUGS :TFPT0805L1001FV Code de commande:1761127

Prix:
Prix ​​promotionnel€2,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3853 unité)

Documents et téléchargements

description

VISHAY - TFPT0805L1001FV - PTC Thermistor, 1 kohm, SMD, 40 VDC, -1% to +1%, TFPT Series

  • Zero Power Resistance at 25°C: 1kohm
  • Thermistor Mounting: SMD
  • Product Range: TFPT Series
  • Operating Voltage Max: 40V
  • Applications: -
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 150°C
  • Automotive Qualification Standard: -
  • External Depth: 1.25mm
  • External Length / Height: 0.45mm
  • External Width: 2mm
  • Operating Temperature Range: -55°C to +150°C
  • Operating Voltage: 40VDC
  • Power Dissipation Pd: 100mW
  • Reel Quantity: 1000
  • Resistance: 1kohm
  • Resistance Tolerance: ± 1%
  • Thermistor Case Style: 0805 [2012 Metric]
  • Thermistor Tolerance: -1% to +1%
  • Thermistor Type: PTC
