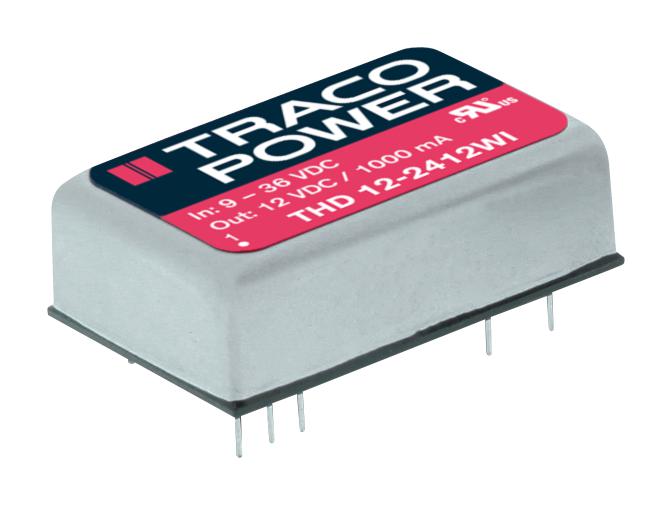

THD 12-2412WI Converter, DC/DC, 12W, 12V/1A TRACO Power

TRACO POWERUGS :THD 12-2412WI Code de commande:1284258

Prix:
Prix ​​promotionnel€59,65

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (118 unité)

Documents et téléchargements

description

TRACO POWER - THD 12-2412WI - Isolated Through Hole DC/DC Converter, ITE, 4:1, 12 W, 1 Output, 12 V, 1 A

  • No. of Outputs: 1 Output
  • Output Power Max: 12W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 1A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: THD12WI Series
  • Input Voltage DC Min: 9V
  • Input Voltage DC Max: 36V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 20.3mm
  • Height: 10.2mm
  • Depth: 31.8mm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: EN 60950-1, IEC 60950-1, UL 60950-1
  • Approvals & Standards: IEC, UL
  • Isolation Voltage: 1.5kV
  • Load Regulation: 0.5%
  • No. of Outputs: 1Outputs
  • Power Rating: 12W
  • Supply Voltage: 24V
