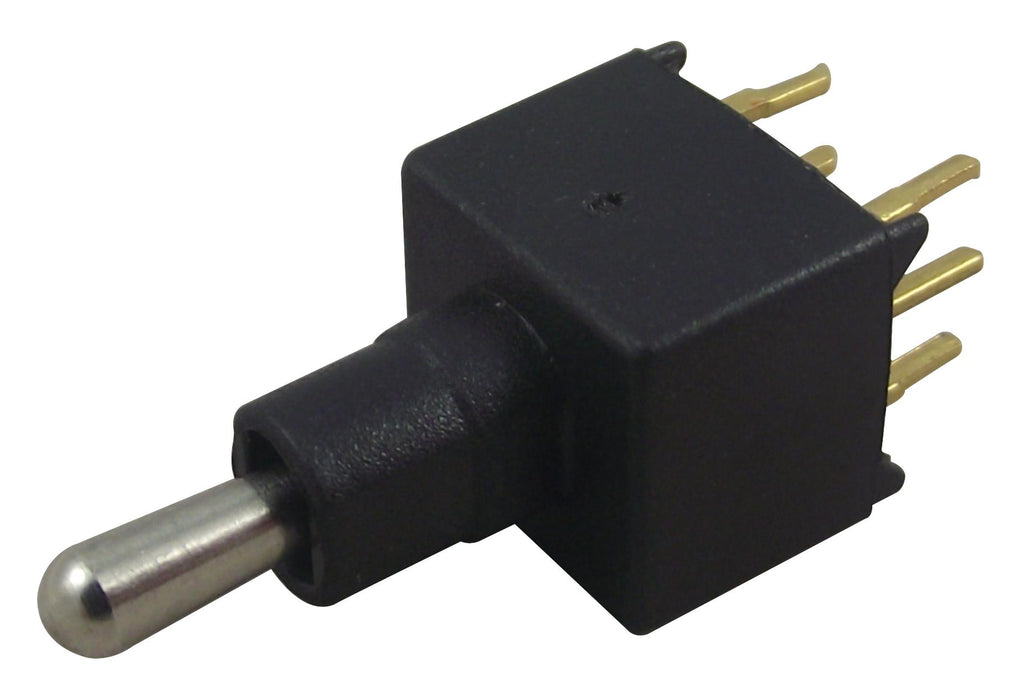

APEM - TL49P0050 - Toggle Switch, On-Off-On, DPDT, Non Illuminated, TL, Through Hole
- Switch Operation: On-Off-On
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: TL Series
- Contact Current Max: -
- Switch Mounting: Through Hole
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Short Lever
- Bush Length: 6.1mm
- Contact Current @ Contact Voltage AC Max: 20mA
- Contact Current @ Contact Voltage DC Max: 20mA
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- Dielectric Strength VDC: 1000V
- External Depth: 9.1mm
- External Length / Height: 19.6mm
- External Width: 9.1mm
- Height: 19.6mm
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 30000
- Operating Force: 2.16N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Switching Power Max: 0.4VA
- Tab Blade Thickness: 0.7mm
