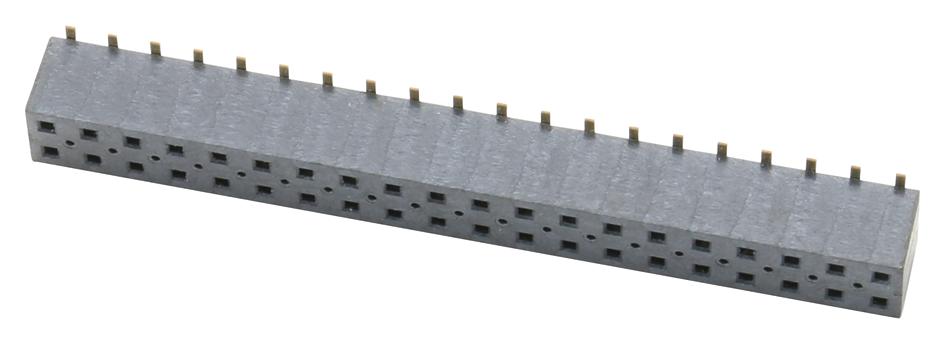

SAMTEC - TLE-120-01-G-DV - PCB Receptacle, Board-to-Board, 2 mm, 2 Rows, 40 Contacts, Surface Mount, Tiger Beam TLE
- Pitch Spacing: 2mm
- No. of Contacts: 40Contacts
- Gender: Receptacle
- Product Range: TLE Series
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Contact Termination: Surface Mount Vertical
- Lead Spacing: 2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Row Pitch: 2mm
- Termination Method: Solder
