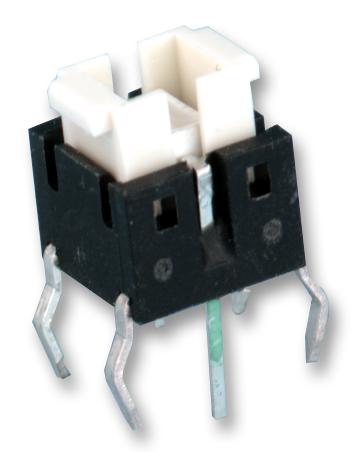

MULTICOMP PRO - TLL-62BY - Tactile Switch, TLL-6, Top Actuated, Through Hole, Plunger for Cap, 160 gf, 50mA at 12VDC
- Product Range: TLL-6 Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Plunger for Cap
- Actuating Force: 160gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 6mm x 6mm
- IP Rating: -
- Illumination: Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Top
- Actuator / Cap Colour: Yellow
- Body Depth: 6.1mm
- Body Width: 6.1mm
- Contact Configuration: SPST
- Contact Current DC Max: 50mA
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 12V
- Contact Voltage DC Nom: 12V
- Current Rating: 50mA
- Dielectric Strength VDC: 250VAC
- Differential Travel Max: 0.2mm
- External Depth: 6.1mm
- External Length / Height: 7mm
- External Width: 6.1mm
- Height: 4.8mm
- Height Max: 7mm
- Insulation Resistance: 100Mohm
- LED Colour: Yellow
- No. of Electrical Operations: 200000
- Operating Force: 160gf
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Switch Operation: Off-On
- Switch Terminals: Solder
