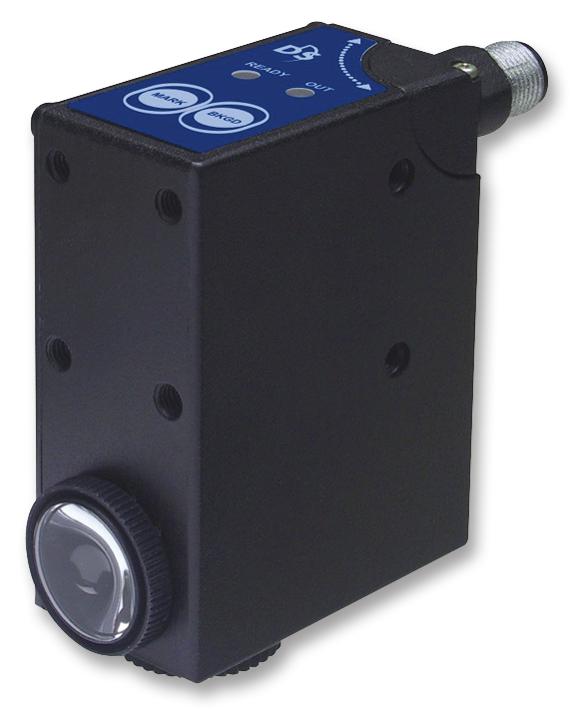

TLU-011 Sensor, Contrast, Red/GRN, 9mm, Cable Datasensor

DATASENSORUGS :TLU-011 Code de commande:1774922

Prix:
Prix ​​promotionnel€454,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9 unité)

Documents et téléchargements

description

DATASENSOR - TLU-011 - Contrast Sensor, Red, Green LED, TLU Series, 6 to 12 mm, 10 to 30 Vdc, 80 mA, NPN, Vertical Spot

  • Sensor Output: NPN
  • Sensing Range Max: 12mm
  • Supply Voltage DC Min: 10V
  • Supply Voltage DC Max: 30V
  • Photo Current: -
  • Product Range: TLU Series
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CE
  • Approval Category: EX II3D
  • Distance Measuring Range: 6mm to 12mm
  • IP Rating: IP67
  • Lens Diameter: 9mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Operating Temperature Range: -10°C to +55°C
  • Output Format: Red /Green
  • Output Type: NPN
  • Output Type 2: Vertical
  • Overall Depth: 31mm
  • Overall Height: 58mm
  • Overall Width: 81.2mm
  • Response Time: 50µs
  • Sensing Range: 6mm to 12mm
  • Supply Current: 80mA
  • Supply Voltage Range DC: 10V to 30V
  • Supply Voltage V DC: 10V
  • Termination Method: 4-Pin Plug
  • Wavelength Green LED: 526nm
  • Wavelength Red LED: 630nm
