TM-533I-Q-T/R Switch, SPST, 0.05A, 12VDC, Solder multicomp Pro

MULTICOMP PROUGS :TM-533I-Q-T/R Code de commande:9471880

Prix:
Prix ​​promotionnel€0,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (378803 unité)

Documenten en downloads

description

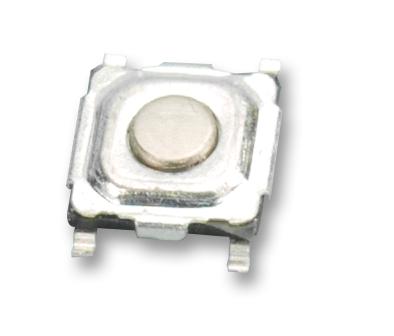

MULTICOMP PRO - TM-533I-Q-T/R - Tactile Switch, TM, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 12VDC

  • Product Range: TM Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 5.1mm x 5.1mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Contact Configuration: SPST-NO
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 12V
  • Dielectric Strength VDC: 250V
  • External Depth: 5.2mm
  • External Width: 5.2mm
  • Height: 1.5mm
  • No. of Electrical Operations: 300000
  • Operating Force: 160gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Pre-travel: 0.25mm
  • Switch Terminals: Solder
