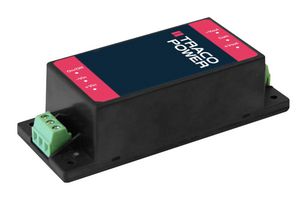

TMDC 10-4825 - Isolated Chassis Mount DC/DC Converter, ITE, 4:1, 10 W, 2 Output, 24 V, 208 mA - TRACO POWER

TRACO POWERUGS :TMDC 10-4825 Code de commande:3260118

Prix:
Prix ​​promotionnel€46,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documenten en downloads

description

  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: Module
  • Depth: 79mm
  • Height: 22mm
  • Input Ratio: 4:1
  • Input Voltage DC Max: 75V
  • Input Voltage DC Min: 18V
  • Input Voltage DC Nom: 48V
  • Isolation Voltage: 3kV
  • No. of Outputs: 2 Output
  • Output Current - Output 1: 208mA
  • Output Current - Output 2: 208mA
  • Output Power Max: 10W
  • Output Regulation: Regulated
  • Output Voltage - Output 1: 24V
  • Output Voltage - Output 2: -24V
  • Power Supply Applications: ITE
  • Product Range: TMDC 10 Series
  • Width: 34mm
