TMP 30215 Converter, AC/DC, ±15V, 1A/30W, Module TRACO Power

TRACO POWERUGS :TMP 30215 Code de commande:1672156

Prix:
Prix ​​promotionnel€82,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10 unité)

Documents et téléchargements

description

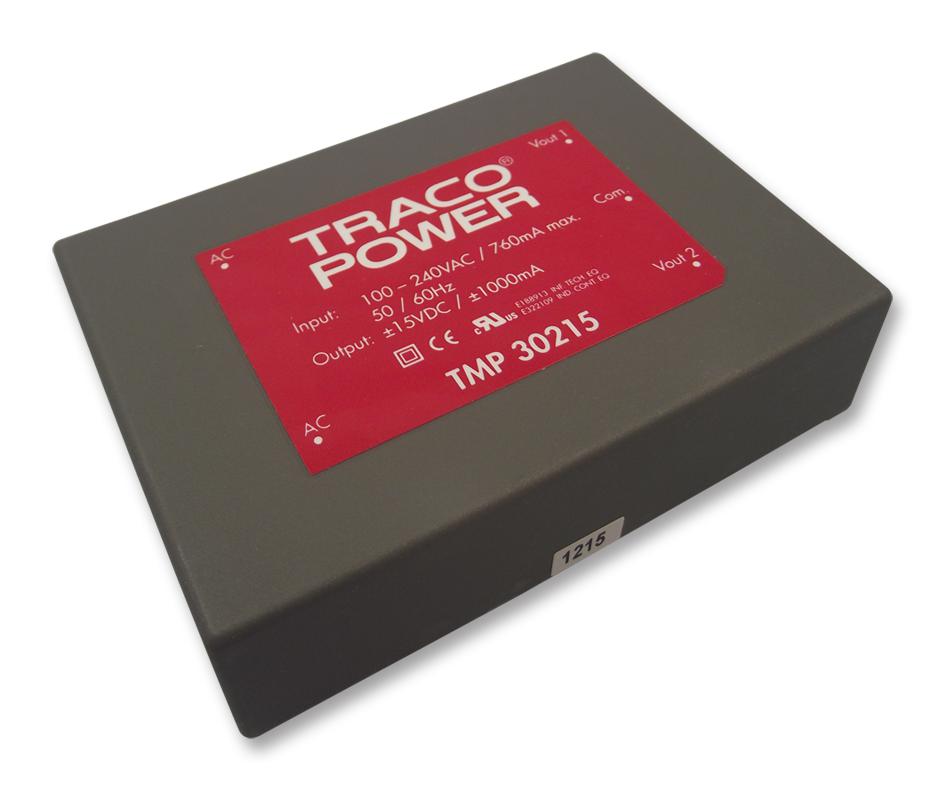

TRACO POWER - TMP 30215 - AC/DC PCB Mount Power Supply (PSU), ITE, 2 Output, 30 W, 15 V, 1 A, -15 V

  • No. of Outputs: 2 Output
  • Output Power Max: 30W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 1A
  • Output Voltage - Output 2: -15V
  • Output Current - Output 2: 1A
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Fixed
  • Input Voltage VAC: 85V AC to 264V AC
  • Width: 63.5mm
  • Height: 21.5mm
  • Depth: 88.9mm
  • Product Range: TMP Series
  • SVHC: No SVHC (27-Jun-2018)
  • Applications: General Purpose
  • Approval Bodies: CB, EN, IEC, UL
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 85V
  • Length: 88.9mm
  • No. of Outputs: 2Outputs
  • Power Rating: 30W
  • Power Supply Type: Enclosed
  • Supply Voltage Typ: 115V AC, 230V AC
