TMPM 10124 PSU, Pcb Mount, 10w, 24V, 0.415A TRACO Power

TRACO POWERUGS :TMPM 10124 Code de commande:1772178

Prix:
Prix ​​promotionnel€48,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

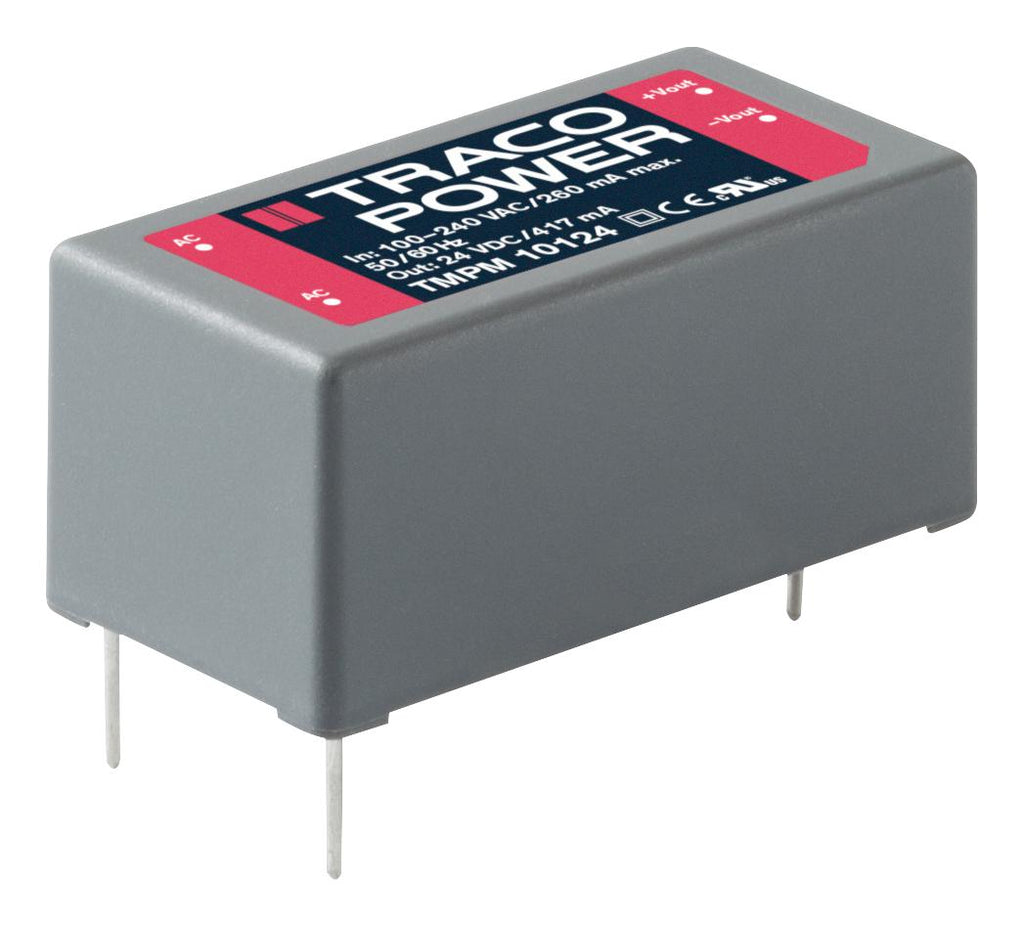

TRACO POWER - TMPM 10124 - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 10 W, 24 V, 415 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 10W
  • Output Voltage - Output 1: 24V
  • Output Current - Output 1: 415mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Fixed
  • Input Voltage VAC: 85V AC to 264V AC
  • Width: 27.2mm
  • Height: 23.5mm
  • Depth: 52.4mm
  • Product Range: TMPM Series
  • SVHC: No SVHC (27-Jun-2018)
  • Applications: General Purpose
  • Input Voltage: 85V AC to 264V AC
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 85V
  • Length: 52.4mm
  • No. of Outputs: 1Outputs
  • Output Current Max: 415mA
  • Power Rating: 10W
  • Supply Voltage Typ: 110V AC, 230V AC
