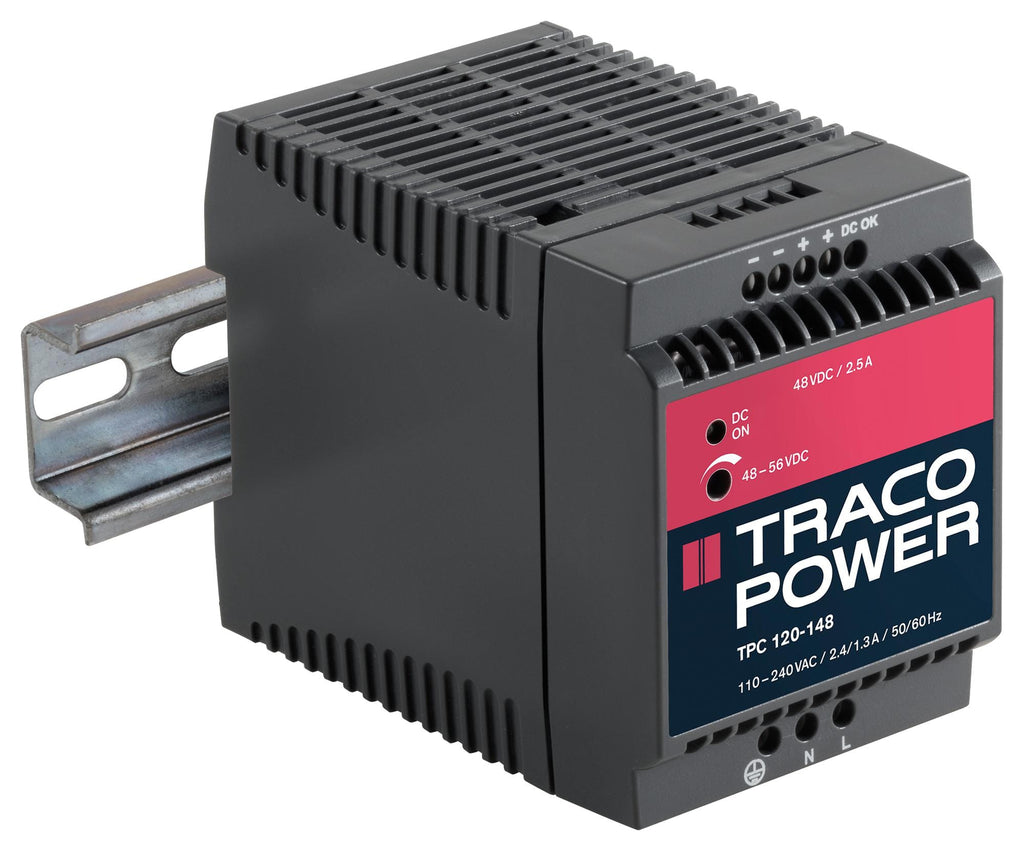

TRACO POWER - TPC 120-148 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 120 W, 48 VDC, 2.5 A
- No. of Outputs: 1 Output
- Output Power Max: 120W
- Output Voltage - Output 1: 48VDC
- Output Current - Output 1: 2.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: TPC Series
- SVHC: No SVHC (27-Jun-2018)
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 85VAC
- No. of Outputs: 1Outputs
- Output Voltage Max: 56V
- Output Voltage Min: 48V
